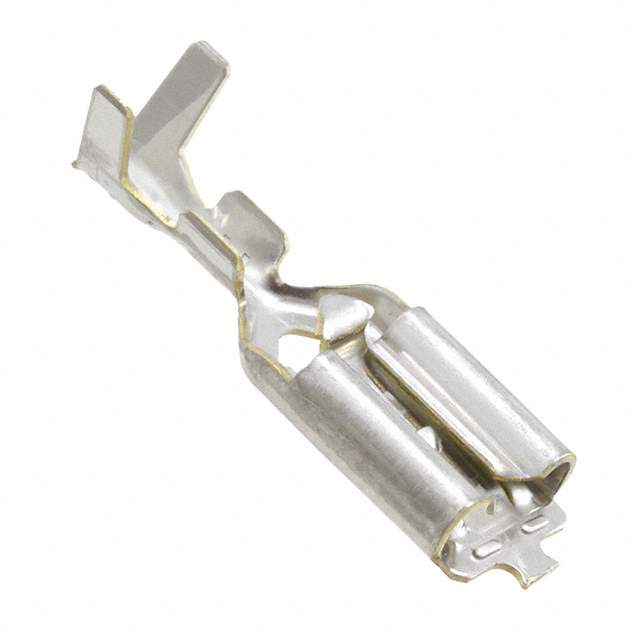

173722-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.287" (7.30mm)
Length - Overall 0.677" (17.20mm)
Termination Crimp
Wire Gauge 20-26 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.051" ~ 0.142" (1.30mm ~ 3.61mm)
Base Product Number 173722
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 2266-173722-1TR,A107101TR,1737221,-173722-1-CSI,A107101CT,-173722-1-SI,173722-1-ND
Standard Package 6,000
Win Source Part Number 1333656-173722-1
Ultra Librarian 3D Model Ultra Librarian 173722-1 CAD Model

Description

TE Connectivity AMP Connectors 1333656-173722-1 is a female quick connect/disconnect connector with crimp termination.

  • Wire Gauge: 20-26 AWG
  • Tab Width: 0.187” (4.75mm)
  • Tab Thickness: 0.020” (0.51mm)
  • Tab Length: 0.287” (7.30mm)
  • Insulation Diameter: 0.051” to 0.142” (1.30mm to 3.61mm)
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • RoHS Compliant: Yes
  • Standard Package: 6,000
