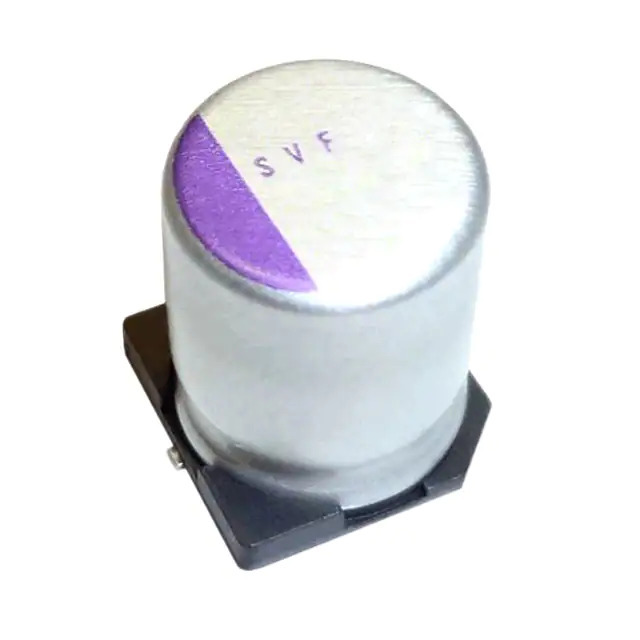

Same model may have multiple batches, images only for reference.

50SVF10M

Name: 50SVF10M
Brand: Panasonic
SKU: 1359467
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	50SVF10M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 10UF 20% 50V SMD / 10 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 40mOhm 1000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVF
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	40mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	39.5 mA @ 120 Hz
Ripple Current @ High Frequency	790 mA @ 100 kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	50SVF
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359467-50SVF10M
Ultra Librarian 3D Model	Ultra Librarian 50SVF10M CAD Model

Description

The OS-CON™ SVF series is a polymer aluminum capacitor manufactured by Panasonic Electronic Components. OS-CON™ SVF is from Panasonic Electronic Components.

Capacitor Type: Polymer Aluminum Capacitor
Mounting Type: Surface Mount
Capacitance: 10μF
Tolerance: ±20%
Voltage Rating: 50V
Temperature Range: -55°C to 125°C
ESR: 40mOhm
Diameter: 0.248"
Seated Height: 0.236"
Packaging: Tape and Reel
Application: General Purpose
