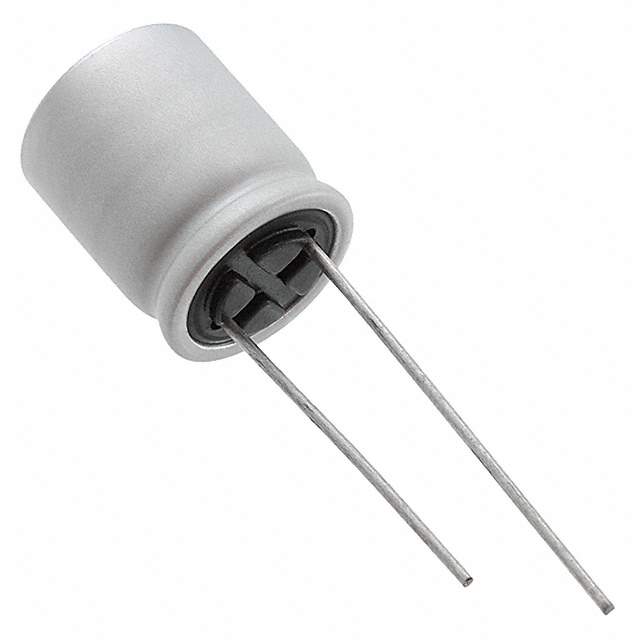

4SEP1200M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series OS-CON, SEP
Packaging Bulk
Type Polymer
Capacitance 1200μF
Tolerance ±20%
Voltage Rating 4V
ESR (Equivalent Series Resistance) 12 mOhm
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Applications General
Ripple Current - Low Frequency 272mA @ 120Hz
Ripple Current - High Frequency 5.44A @ 100kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.512" (13.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 763815-4SEP1200M
Family Name SEP
Introduction Date November 01, 2001
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Quantity per package 200
Ultra Librarian 3D Model Ultra Librarian 4SEP1200M CAD Model

Description

The Panasonic Electronic Components 4SEP1200M is a high-capacity polymer capacitor that is suitable for use in a wide range of applications.

  • Capacitance: 1200μF
  • Voltage Rating: 4V
  • Ripple Current: 272mA @ 120Hz and 5.44A @ 100kHz
  • Lifetime: 3000 hours @ 105°C
  • Package: radial, can case
  • Suitable For: capacitors
