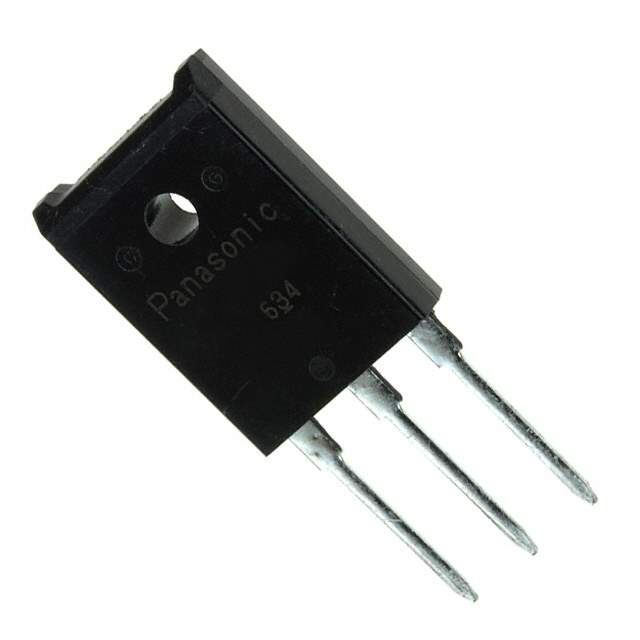

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 7A
Voltage - Collector Emitter Breakdown (Maximum) 500V
Vce Saturation (Maximum) @ Ib, Ic 1V @ 800mA, 4A
Current - Collector Cutoff (Maximum) 100μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 8 @ 4A, 5V
Power - Max 3W
Frequency - Transition 20MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TOP-3F
Manufacturer Package TOP-3F-A1
Win Source Part Number 762623-2SC3974
Family Name 2SC3974
Introduction Date March 17, 1999
ECCN EAR99
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2SC3974 CAD Model

Description

The Panasonic Electronic Components 2SC3974 is a high-power NPN transistor that is suitable for use in a wide range of applications.

  • Manufacturer: Panasonic Electronic Components
  • Maximum Power: 3W
  • Maximum Collector-Emitter Breakdown Voltage: 500V
  • DC Current Gain: 8 @ 4A and 5V
  • Vce Saturation: 1V @ 800mA and 4A
  • Package: TOP-3F
  • Category: Discrete Semiconductor Products
