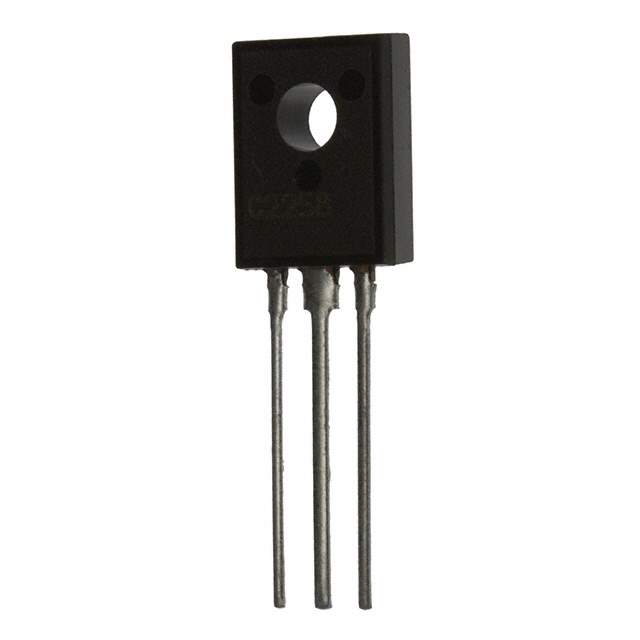

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 100mA
Voltage - Collector Emitter Breakdown (Maximum) 300V
Vce Saturation (Maximum) @ Ib, Ic 1.5V @ 3mA, 30mA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 50 @ 5mA, 50V
Power - Max 1.2W
Frequency - Transition 140MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-225AA, TO-126-3
Manufacturer Package TO-126B-A1
Win Source Part Number 762578-2SC3063
Family Name 2SC3063
Introduction Date June 19, 2001
ECCN EAR99
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2SC3063 CAD Model

Description

The 2SC3063 is an NPN transistor from Panasonic Electronic Components.

  • Manufacturer: Panasonic Electronic Components
  • Type: NPN Transistor
  • Popularity: Medium
  • Supply and Demand: Limited
  • Package: TO-225AA, TO-126-3
  • Mounting: Through-Hole
  • Power Rating: 1.2W (Maximum)
  • Frequency Transition: 140MHz
  • DC Current Gain: 50 @ 5mA and 50V
  • Collector-Emitter Voltage: 300V (Maximum)
  • Collector Current: 100mA
  • Status: Obsolete
  • Alternative Parts: 2SC3619 and 2SC3620
