Same model may have multiple batches, images only for reference.

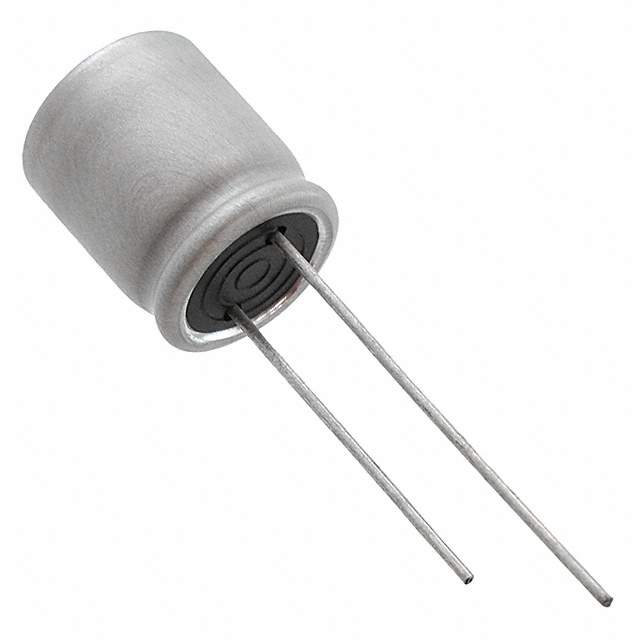

25SEPF330M Real Image
Same model may have multiple batches, images only for reference.

25SEPF330M

Part No 25SEPF330M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SEPF
Package Bulk
Type Polymer
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 14mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 250 mA @ 120 Hz
Ripple Current @ High Frequency 5 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number 25SEPF
Other Names P16323,2266-25SEPF330M
Standard Package 200
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1308435-25SEPF330M
Ultra Librarian 3D Model Ultra Librarian 25SEPF330M CAD Model

Description

The Panasonic Electronic Components 1308435-25SEPF330M is a bulk aluminum-polymer capacitor designed for general-purpose applications.

  • Series: OS-CON™, SEPF
  • Capacitance: 330 µF
  • Tolerance: ±20%
  • Voltage Rating: 25 V
  • ESR (Equivalent Series Resistance): 14mOhm
  • Ripple Current: 250 mA @ low frequency and 5 A @ high frequency
  • Lifetime: 5000 Hrs @ 105°C
  • Mounting Type: Through-hole
  • Package: Radial, can
  • Height: 0.512" (13.00mm)
  • Lead Spacing: 0.197" (5.00mm)
  • Operating Temperature Range: -55°C to 105°C
