Same model may have multiple batches, images only for reference.

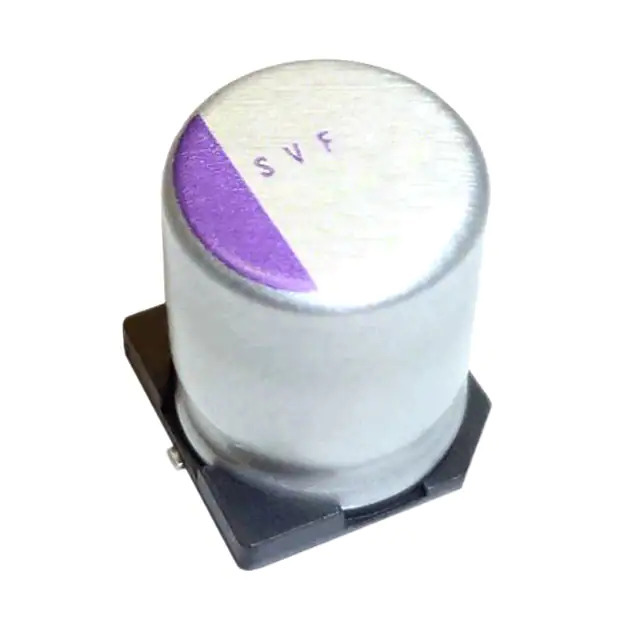

16SVF560M Panasonic
Same model may have multiple batches, images only for reference.

16SVF560M

Part No 16SVF560M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 16V SMD / 560 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 14mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVF
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 14mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 78 mA @ 120 Hz
Ripple Current @ High Frequency 1.56 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 16SVF
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359564-16SVF560M
Ultra Librarian 3D Model Ultra Librarian 16SVF560M CAD Model

Description

The 1359564-16SVF560M is a polymer capacitor from Panasonic Electronic Components.

  • Manufacturer: Panasonic Electronic Components
  • Series: OS-CON™ SVF
  • Application: General Purpose
  • Capacitance: 560 µF
  • Tolerance: ±20%
  • Voltage Rating: 16 V
  • ESR: 14mOhm
  • Lifetime: 1000 hours @ 125°C
  • Ripple Current (Low Frequency): 78 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.56 A @ 100 kHz
  • Size: 0.315" Dia (8.00mm)
  • Seated Height: 0.472" (12.00mm)
  • Mounting Type: Surface Mount
  • Package: Radial, Can - SMD
  • REACH: Unaffected
  • ECCN: EAR99
