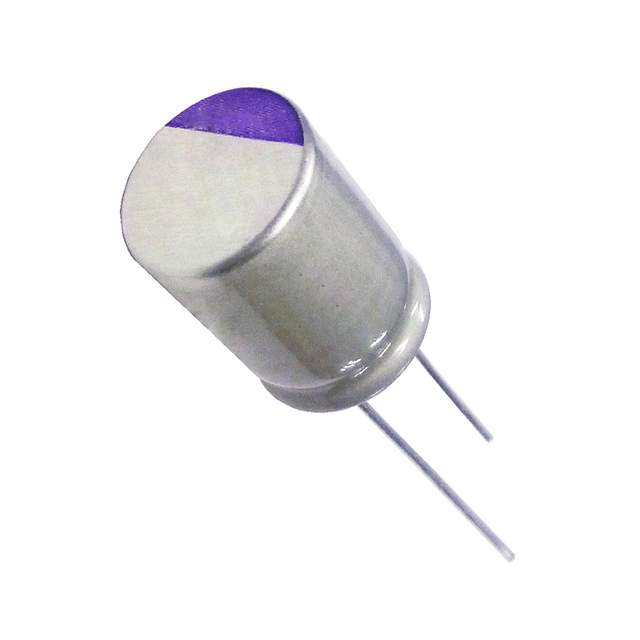

Same model may have multiple batches, images only for reference.

16SEPG270W

Name: 16SEPG270W
Brand: Panasonic
SKU: 1329291
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	16SEPG270W
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 270UF 20% 16V T/H / 270 µF 16 V Aluminum - Polymer Capacitors Radial, Can 10mOhm 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Bulk
Type	Polymer
Capacitance	270 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	10mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ Low Frequency	252 mA @ 120 Hz
Ripple Current @ High Frequency	5.04 A @ 100 kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.354" (9.00mm)
Mounting	Through Hole
Case / Package	Radial, Can
Base Product Number	16SEPG
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	P122604
Standard Package	500
Win Source Part Number	1329291-16SEPG270W
Ultra Librarian 3D Model	Ultra Librarian 16SEPG270W CAD Model

Description

The 16SEPG270W is a polymer aluminum capacitor with a capacitance of 270 µF and tolerance of ±20% from Panasonic Electronic Components.

Capacitance: 270 µF
Tolerance: ±20%
Voltage Rating: 16V
ESR: 10mOhm
Ripple Current: 252 mA @ 120 Hz and 5.04 A @ 100 kHz
Lifetime: 5000 hours @ 105°C
Temperature Range: -55°C to 105°C
Package: Radial can
Diameter: 0.248" (6.30mm)
Height: 0.354" (9.00mm)
Application: General-purpose
