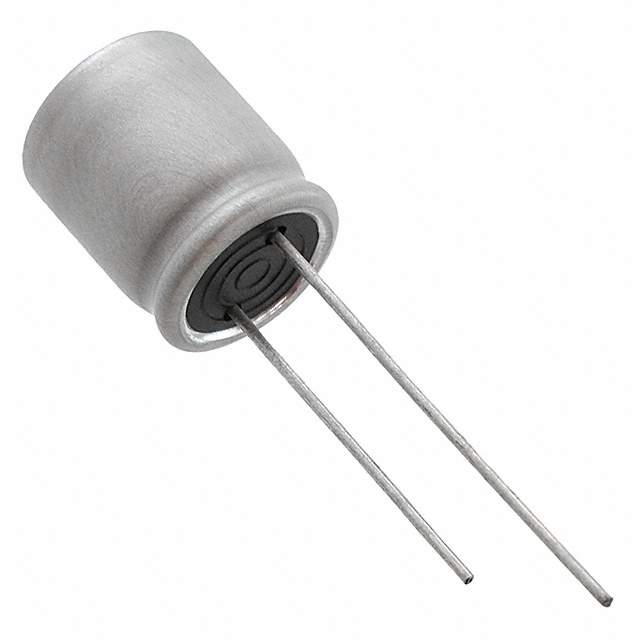

Same model may have multiple batches, images only for reference.

20SEPF560M

Name: 20SEPF560M
Brand: Panasonic
SKU: 1331540
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	20SEPF560M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 560UF 20% 20V T/H / 560 µF 20 V Aluminum - Polymer Capacitors Radial, Can 12mOhm 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Bulk
Type	Polymer
Capacitance	560 µF
Tolerance	±20%
Voltage - Rated	20 V
ESR (Equivalent Series Resistance)	12mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ Low Frequency	270 mA @ 120 Hz
Ripple Current @ High Frequency	5.4 A @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Mounting	Through Hole
Case / Package	Radial, Can
Base Product Number	20SEPF
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	P16316
Standard Package	200
Win Source Part Number	1331540-20SEPF560M
Ultra Librarian 3D Model	Ultra Librarian 20SEPF560M CAD Model

Description

The Panasonic Electronic Components 1331540-20SEPF560M is a polymer capacitor with a capacitance of 560 μF and a voltage rating of 20V.

Capacitance: 560 μF
Voltage Rating: 20V
Tolerance: ±20%
ESR (Equivalent Series Resistance): 12mOhm
Case Style: Radial can
Lead Spacing: 0.197 inches (5.00mm)
Ripple Current: 270mA @ low frequency and 5.4A @ high frequency
Lifetime: 5000 hours @ 105°C
Standard Package: 200
Height: 0.512 inches (13.00mm)
Supply and Demand Status: Balanced
ROHS3 Compliant: Yes
