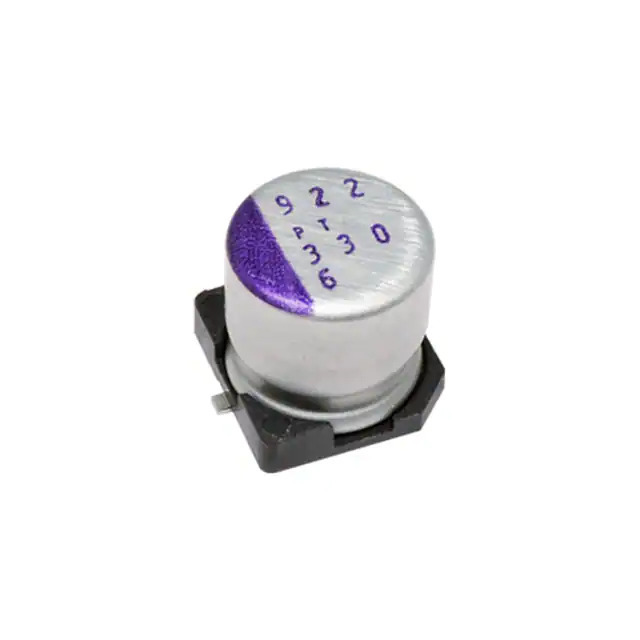

Same model may have multiple batches, images only for reference.
16SVPT100M Panasonic
Same model may have multiple batches, images only for reference.

16SVPT100M

Part No 16SVPT100M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 100UF 20% 16V SMD / 100 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 24mOhm 20000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPT
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 24mOhm
Lifetime @ Temp. 20000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 124.5 mA @ 120 Hz
Ripple Current @ High Frequency 2.49 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.256" (6.50mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 16SVPT
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359566-16SVPT100M
Ultra Librarian 3D Model Ultra Librarian 16SVPT100M CAD Model

Description

The 1359566-16SVPT100M is a polymer capacitor from Panasonic Electronic Components.

  • Series: OS-CON™ SVPT
  • Capacitance: 100 μF
  • Tolerance: ±20%
  • Rated Voltage: 16 V
  • ESR: 24mOhm
  • Lifetime: 20000 Hours @ 105°C
  • Application: General Purpose
  • Ripple Current (Low Frequency): 124.5 mA @ 120 Hz
  • Ripple Current (High Frequency): 2.49 A @ 100 kHz
  • Size: 0.248" diameter
  • Height: 0.256"
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Packaging: Tape & Reel
  • REACH: Unaffected
  • ECCN: EAR99
