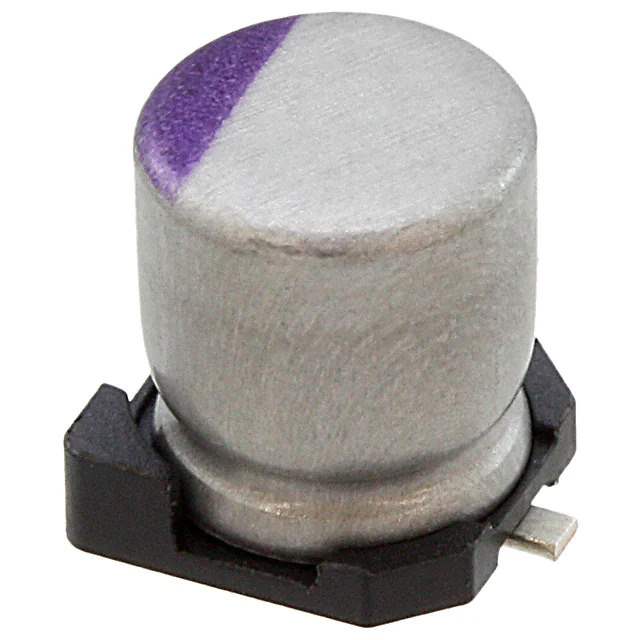

16SVPF82M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic
Series OS-CON™, SVPF
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 82 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 27mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 150 mA @ 120 Hz
Ripple Current @ High Frequency 3 A @ 100 kHz
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 16SVPF
Standard Package 1,500 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 850077-16SVPF82M
Ultra Librarian 3D Model Ultra Librarian 16SVPF82M CAD Model

Description

The 16SVPF82M is a polymer capacitor from Panasonic's OS-CON™ SVPF series. Bold: 16SVPF82M and Panasonic.

  • Series: OS-CON™ SVPF
  • Capacitance: 82µF
  • Tolerance: ±20%
  • Voltage Rating: 16V
  • ESR: 27mOhm
  • Application: General Purpose
  • Package: Radial, Can - SMD
  • Diameter: 0.197" (5.00mm)
  • Height: 0.236" (6.00mm)
  • Operating Temperature: -55°C to 105°C
