Same model may have multiple batches, images only for reference.

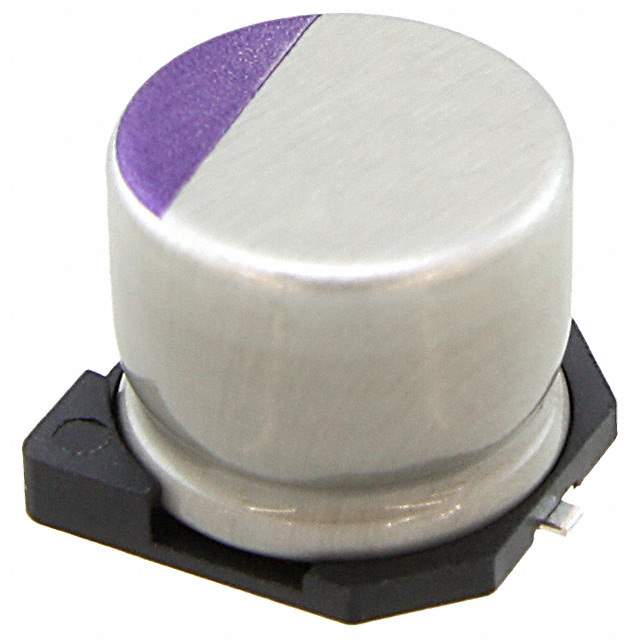

20SVP47M Real Image
Same model may have multiple batches, images only for reference.

20SVP47M

Part No 20SVP47M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 47UF 20% 20V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 47μF
Tolerance ±20%
Voltage Rating 20V
ESR 45 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Ripple Current - Low Frequency 94.5mA @ 120Hz
Ripple Current - High Frequency 1.89A @ 100kHz
Height - Seated (Max) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 1003064-20SVP47M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian 20SVP47M CAD Model

Description

The Panasonic Electronic Components 1003064-20SVP47M is an active polymer capacitor with a capacitance of 47μF and a voltage rating of 20V.

  • Tolerance: ±20%
  • ESR: 45 mOhm
  • Package: reel - TR
  • Mounting: SMD (SMT) technology
  • Lifetime: 2000 Hrs @ 105°C
  • Ripple Current: 94.5mA @ 120Hz and 1.89A @ 100kHz
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Height When Seated: 0.276" (7.00mm)
  • Temperature Range: -55°C to 105°C
  • Category: capacitors
  • Popularity: medium popularity
  • Supply and Demand Status: balanced
  • Quantity per Package: 1k pcs
