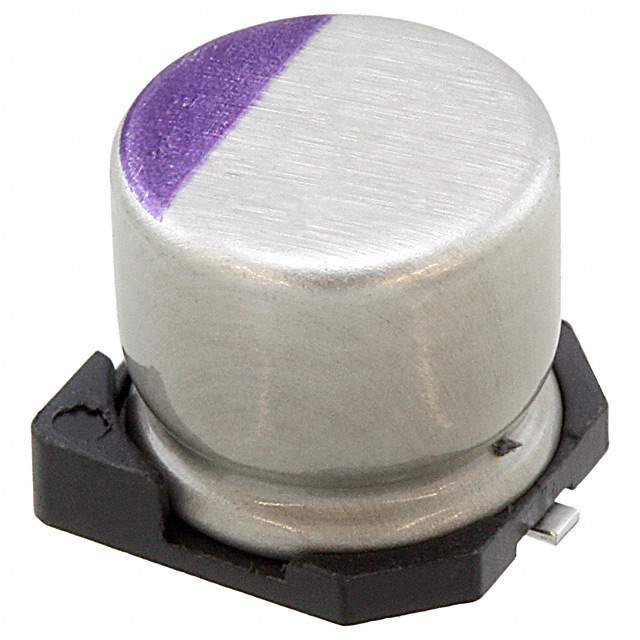

Same model may have multiple batches, images only for reference.

16SVPC68M

Name: 16SVPC68M
Brand: Panasonic
SKU: 976848
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	16SVPC68M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 68UF 20% 16V SMD / 68 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPC
Package	Tape & Reel
Type	Polymer
Capacitance	68 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	30mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ Low Frequency	110 mA @ 120 Hz
Ripple Current @ High Frequency	2.2 A @ 100 kHz
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	16SVPC
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	P16474TR,P16474CT,P16474DKR
Standard Package	1,000
Win Source Part Number	976848-16SVPC68M
Ultra Librarian 3D Model	Ultra Librarian 16SVPC68M CAD Model

Description

The Panasonic Electronic Components 976848-16SVPC68M is an aluminum-polymer capacitor that is designed for general-purpose applications.

Capacitance: 68µF
Voltage Rating: 16V
ESR: 30mOhm
Ripple Current: 110mA @ low frequency and 2.2A @ high frequency
RoHS Compliant: Yes
Temperature Range: -55°C to 105°C
