Same model may have multiple batches, images only for reference.

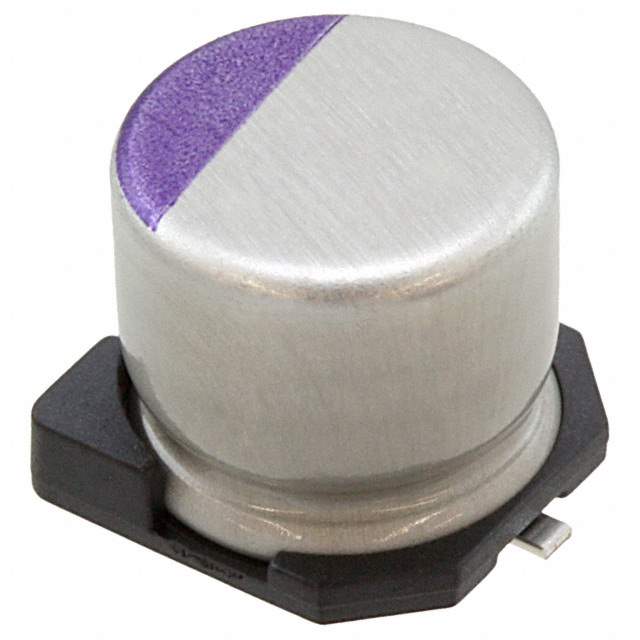

10SVP56M Real Image
Same model may have multiple batches, images only for reference.

10SVP56M

Part No 10SVP56M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 56UF 20% 10V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 56μF
Tolerance ±20%
Voltage Rating 10V
ESR 45 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Ripple Current - Low Frequency 85mA @ 120Hz
Ripple Current - High Frequency 1.7A @ 100kHz
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 1000920-10SVP56M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian 10SVP56M CAD Model

Description

The Panasonic Electronic Components Polymer capacitor is a surface mount device (SMD) with a capacitance of 56μF and a voltage rating of 10V.

  • Type: Polymer capacitor
  • Mounting: Surface Mount Device (SMD)
  • Capacitance: 56μF
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • ESR: 45 mOhm
  • Ripple Current (Low Frequency): 85mA @ 120Hz
  • Ripple Current (High Frequency): 1.7A @ 100kHz
  • Height: 0.236" (6.00mm)
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Lifetime @ Temperature: 2000 Hrs @ 105°C
  • Category: Capacitor
  • Status: Active
  • Temperature Range: -55°C to 105°C
  • Supply and Demand Status: Balanced
  • Quantity per Package: 1k pcs
