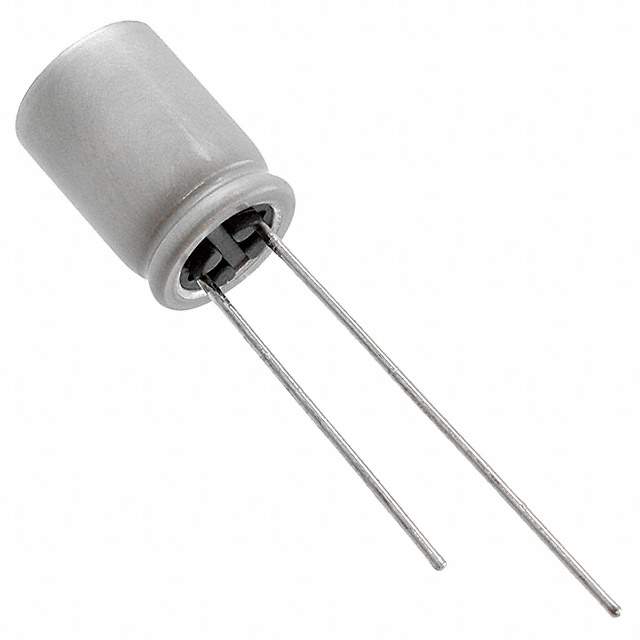

Same model may have multiple batches, images only for reference.

10SEP330M

Name: 10SEP330M
Brand: Panasonic
SKU: 1331413
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	10SEP330M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 330UF 20% 10V T/H / 330 µF 10 V Aluminum - Polymer Capacitors Radial, Can 17mOhm 3000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Bulk
Type	Polymer
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	10 V
ESR (Equivalent Series Resistance)	17mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ Low Frequency	197.5 mA @ 120 Hz
Ripple Current @ High Frequency	3.95 A @ 100 kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Mounting	Through Hole
Case / Package	Radial, Can
Base Product Number	10SEP
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	P16282
Standard Package	200
Win Source Part Number	1331413-10SEP330M
Ultra Librarian 3D Model	Ultra Librarian 10SEP330M CAD Model

Description

The Panasonic Electronic Components 1144895 is a radial, can type aluminum-polymer capacitor with a capacitance of 330 μF and a tolerance of ±20%.

Manufacturer: Panasonic Electronic Components
Type: radial, can type aluminum-polymer capacitor
Capacitance: 330 μF
Tolerance: ±20%
Voltage Rating: 10V
ESR: 17mOhm
Temperature Range: -55°C to 105°C
Lifetime: 3000 hours @ 105°C
Suitable for: general-purpose applications
Mounting: through-hole
Lead Spacing: 0.138" (3.50mm)
Diameter: 0.315" (8.00mm)
Height: 0.472" (12.00mm)
Compliance: ROHS3 compliant
