Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Type Polymer
Capacitance 560μF
Tolerance ±20%
Voltage - Rated 10V
ESR (Equivalent Series Resistance) 13mOhm
Lifetime at Temp. 2000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 261.5mA at 120Hz
Ripple Current at High Frequency 5.23A at 100kHz
Parts Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.500" (12.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1121086-10SVP560M
Manufacturer Homepage www.ssdc-jp.com/eng/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 10SVP560M CAD Model

Description

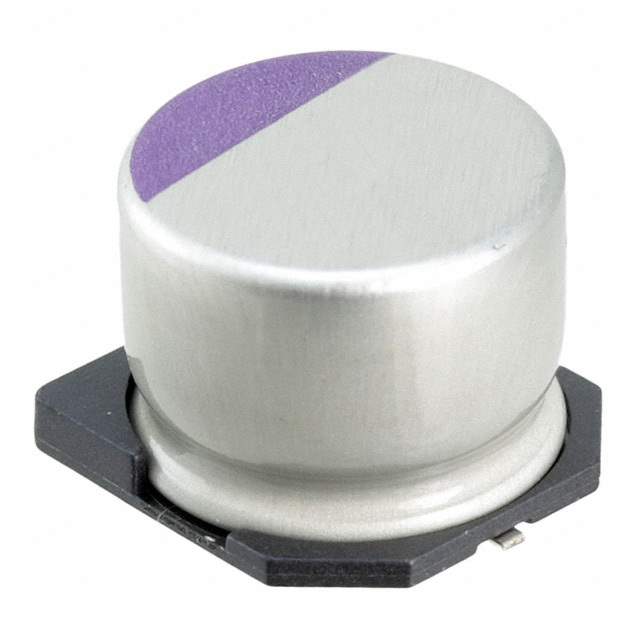

The Panasonic Electronic Components 1121086-10SVP560M is a polymer capacitor with a capacitance of 560μF and a voltage rating of 10V.

  • Capacitance: 560μF
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • ESR: 13mOhm
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Height: 0.500" (12.70mm)
  • Lifetime: 2000 Hrs @ 105°C
  • Ripple Current: 261.5mA @ 120Hz and 5.23A @ 100kHz
  • Applications: General-purpose
  • Packaging: Radial, Can - SMD
  • Popularity: Medium
  • Supply and Demand Status: Limited
