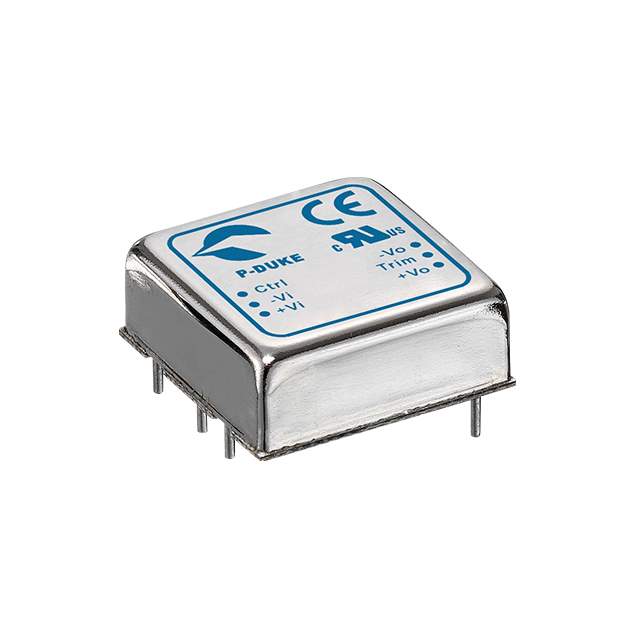

LCD20-48D12W Real Image
Same model may have multiple batches, images only for reference.

LCD20-48D12W

Part No LCD20-48D12W
Manufacturer P-DUKE Technology, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 20W / Isolated Module DC DC Converter 2 Output 12V -12V 833mA, 833mA 18V - 75V Input
Datasheet
LCD20-48D12W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr P-DUKE Technology, Inc.
Series LCD20W (20W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 833mA, 833mA
Power (Watts) 20 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Adjustable Output, Remote On/Off
Temperature Range - Operating -40°C ~ 101°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features Enable, Active Low
Approval Agency CB, CE, cURus
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2369-LCD20-48D12W
Standard Package 10
Win Source Part Number 1204338-LCD20-48D12W
Ultra Librarian 3D Model Ultra Librarian LCD20-48D12W CAD Model

Description

The P-DUKE Technology, Inc. 1204338-LCD20-48D12W is a 20W isolated module DC DC converter that is part of the LCD20W (20W) series.

  • Output: adjustable
  • Features: remote on/off
  • Package: tube
  • Mountable: through-hole
  • Voltage Isolation: 1.6 kV
  • Outputs: 2
  • Maximum Output Current: 833mA each
