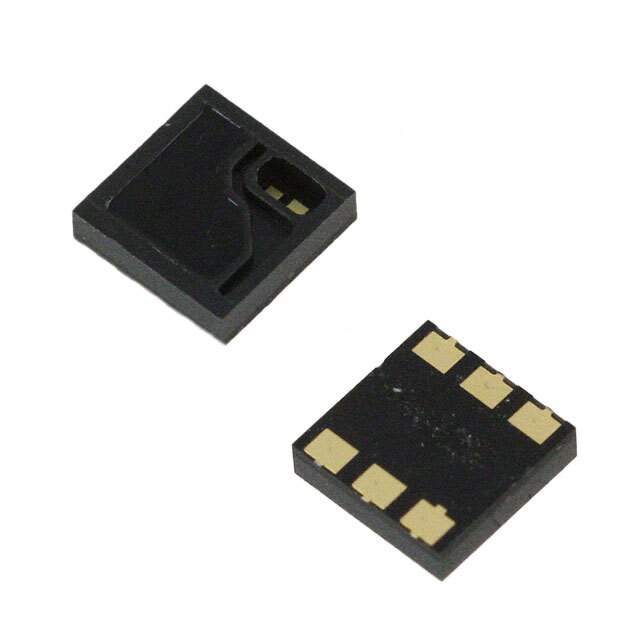

The SFH 7743 is an integrated ambient light and proximity sensor from OSRAM Opto Semiconductors. This sensor combines a photodiode for ambient light detection and an infrared emitter with a photodetector for proximity sensing. This sensor is designed for use in mobile devices, wearables, and other applications requiring ambient light and proximity detection.

Applications:

• Mobile Phones: Automatic display brightness adjustment and proximity detection for disabling the touchscreen during calls.
• Tablets: Adaptive brightness control based on ambient light conditions.
• Wearable Devices (Smartwatches, Fitness Trackers): Proximity sensing for gesture recognition and ambient light sensing for display optimization.
• Notebooks and Laptops: Automatic keyboard backlight control and user presence detection.
• IoT Devices: Light level monitoring and proximity detection for smart home applications.

Features:

• Integrated Ambient Light and Proximity Sensor: Combines both functionalities in a single package.
• High Sensitivity: Excellent performance even in low-light conditions.
• Proximity Detection: Accurate distance measurement with integrated IR emitter and detector.
• Low Power Consumption: Optimized for battery-powered devices.
• Digital Interface: I2C interface for easy communication with microcontrollers.

Benefits:

• Optimized Display Brightness: Automatically adjusts display brightness based on ambient light, improving user experience and saving power.
• Touchscreen Deactivation During Calls: Prevents accidental touches during phone calls.
• Gesture Recognition: Enables touchless interaction with devices.
• Extended Battery Life: Low power consumption extends the operating time of battery-powered devices.
• Space Saving: Integrated design reduces the number of components required on the PCB.

Additional Details:

The SFH 7743 integrates an ambient light sensor (ALS) and a proximity sensor (PS) into a single, compact package. The ALS measures the intensity of ambient light, while the PS uses an infrared emitter and detector to determine the proximity of objects. The sensor communicates with a host microcontroller via an I2C interface. The device is designed to operate over a wide temperature range and is suitable for use in various environmental conditions. It offers a high level of accuracy and repeatability, making it ideal for demanding applications where reliable ambient light and proximity detection are essential.
