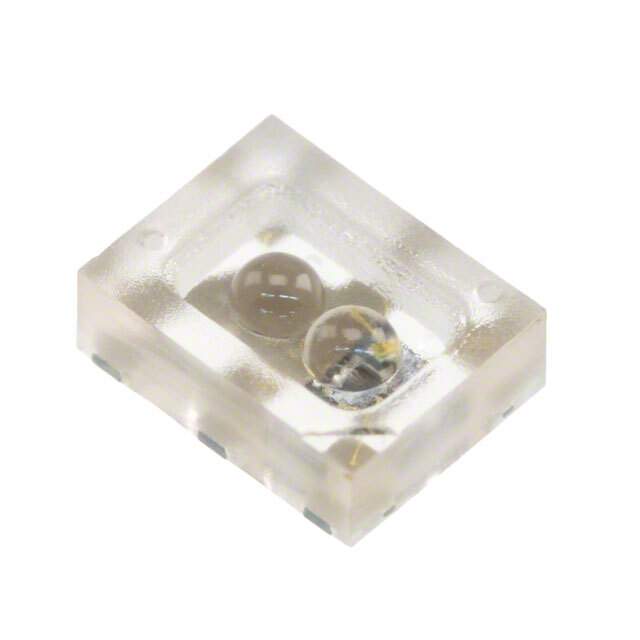

AEDR-8300-1W2

Part No AEDR-8300-1W2
Manufacturer Broadcom Limited
Catalog Optical Sensors - Reflective - Logic Output
Description ENCODER REFL OPT 2CH AMB LLP / Optical Encoder Rotary Incremental Round Straight Digital Square Wave Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Packaging Reel package
Sensing Distance 0.079" (2mm)
Sensing Method Reflective
Sensing Object Codewheel/Codestrip
Mounting SMD
Operating Supply Current 2.2mA
Operating Supply Voltage 4.5 V ~ 5.5 V
Package 5.12mm L x 3.96mm W x 1.63mm H
Features Compact Model
Win Source Part Number 768296-AEDR-8300-1W2
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name AEDR-8300-1W2
Introduction Date May 30, 2006
ECCN EAR99
Country of Origin Malaysia, Thailand
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AEDR-8300-1W2 CAD Model

Description

The Broadcom Limited 768296-AEDR-8300-1W2 is a compact model sensor with reflective sensing method.

  • Sensing Distance: 0.079 inches (2mm)
  • Sensing Method: Reflective
  • Sensing for: Codewheel/Codestrip
  • Packaging: Reel
  • Popularity: Medium
  • Units per Package: 100
  • Operating Supply Voltage: 4.5V to 5.5V
  • Operating Supply Current: 2.2mA
  • Introduction Date: May 30, 2006
  • Estimated EOL Date: 2025
  • ECCN: EAR99
  • Origin: Malaysia, Thailand
