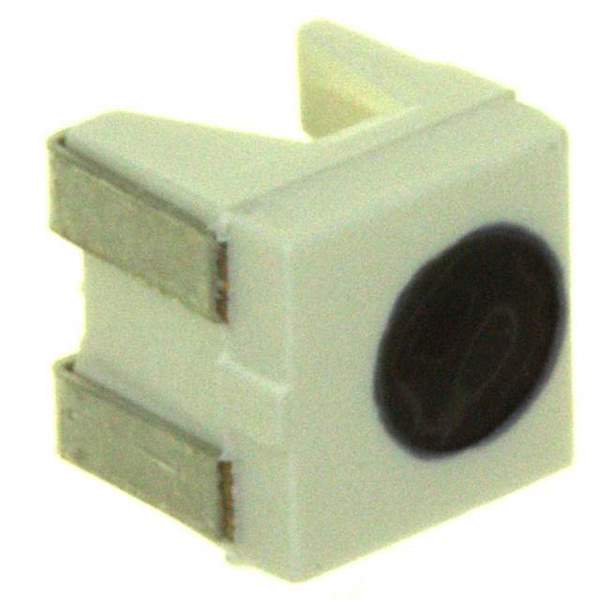

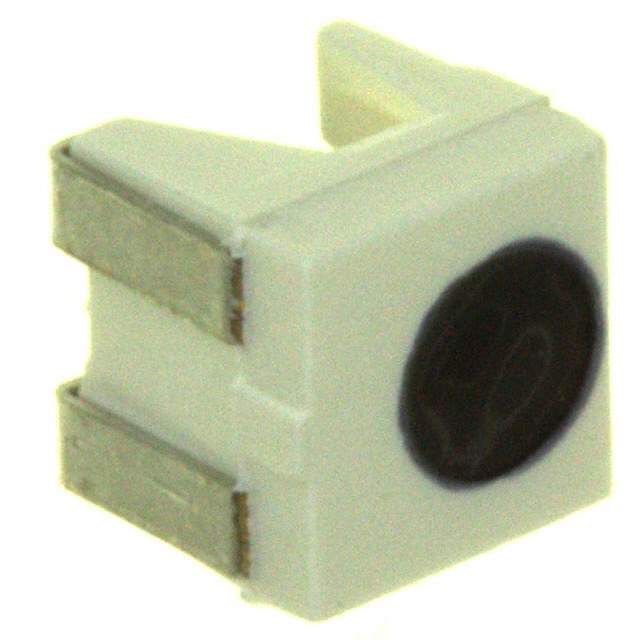

SFH325FA-Z Real Image
Same model may have multiple batches, images only for reference.

SFH325FA-Z

Part No SFH325FA-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR NPN 980NM 2PLCC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer OSRAM Opto Semiconductors Inc.
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 35V
Maximum Current Collector 15mA
Current - Dark (Id) (Max) 50nA
Wavelength 980nm
Viewing Angle 120°
Maximum Power Dissipation 165mW
Mounting Surface Mount, Right Angle
Orientation Side View
Temperature Range - Operating -40°C to 100°C (TA)
Dimension 2-LCC (J-Lead)
Win Source Part Number 140462-SFH325FA-Z
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SFH325FA-Z CAD Model

Description

The OSRAM Opto Semiconductors Inc. 140462-SFH325FA-Z is a medium popularity electronic component that belongs to the sensors, transducers category.

  • GPTDescription: This electronic component is designed to provide reliable performance and is a great choice for those who are looking for a high-quality electronic component that can be used in a variety of different applications.
  • Mounting: surface mount, right angle mounting
  • Maximum Power Dissipation: 165mW
  • Viewing Angle: 120 degrees
  • Maximum Current Collector: 15mA
  • Operating Temperature Range: -40 degrees Celsius to 100 degrees Celsius
