Same model may have multiple batches, images only for reference.

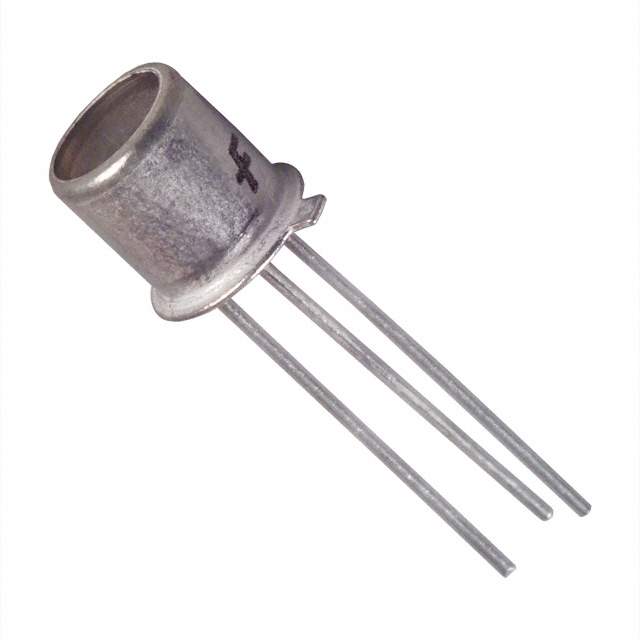

L14P2 Real Image
Same model may have multiple batches, images only for reference.

L14P2

Part No L14P2
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Phototransistors
Description DETECTOR/TRANSISTOR PHOTO TO-18
Datasheet
L14P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Status Obsolete(EOL)
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Current - Dark (Id) (Max) 100nA
Wavelength 880nm
Viewing Angle 16°
Maximum Power Dissipation 300mW
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -65°C to 125°C (TA)
Dimension TO-206AA, TO-18-3 Metal Can
Win Source Part Number 205910-L14P2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian L14P2 CAD Model

Description

The L14P2 is a sensor/transducer from Fairchild/ON Semiconductor that is designed for use in a variety of applications.

  • Wavelength: 880nm
  • Viewing Angle: 16°
  • Current-Dark (Id) (Max): 100nA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Power Dissipation: 300mW
  • Package: TO-206AA, TO-18-3 metal can
  • Status: Obsolete(EOL)
