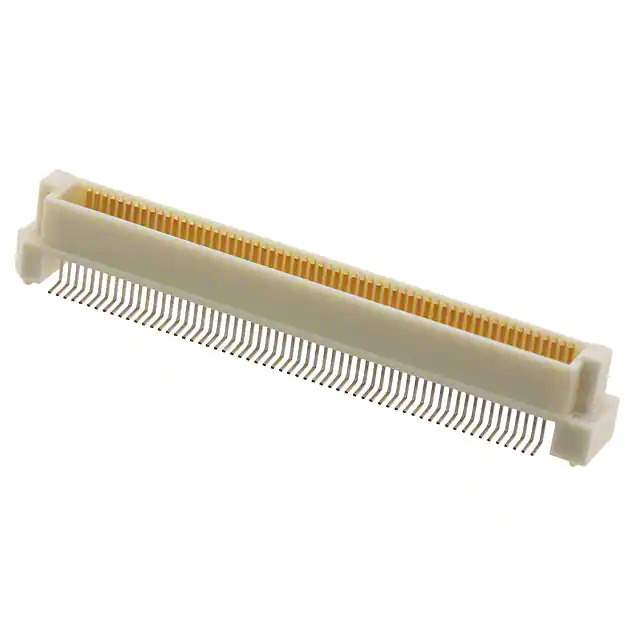

FX8C-120P-SV(92) Real Image
Same model may have multiple batches, images only for reference.

FX8C-120P-SV(92)

Part No FX8C-120P-SV(92)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 120POS SMD GOLD / 120 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX8C
Package Tape & Reel
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 120
Pitch 0.024" (0.60mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 5mm, 10mm
Height Above Board 0.175" (4.45mm)
Base Product Number FX8
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 852221-FX8C-120P-SV(92)
Ultra Librarian 3D Model Ultra Librarian FX8C-120P-SV(92) CAD Model

Description

The 852221-FX8C-120P-SV(92) is a header connector from Hirose Electric Co Ltd.

  • Series: FunctionMax™ FX8C
  • Positions: 120
  • Pitch: 0.024" (0.60mm)
  • Features: Outer Shroud Contacts
  • Mounting Type: Surface Mount
  • Height Above Board: 0.175" (4.45mm)
  • Contact Finish: Gold
  • Packaging: Tape and Reel
  • Standard Package: 1,000 pcs
  • Application: Mezzanine (board to board)
