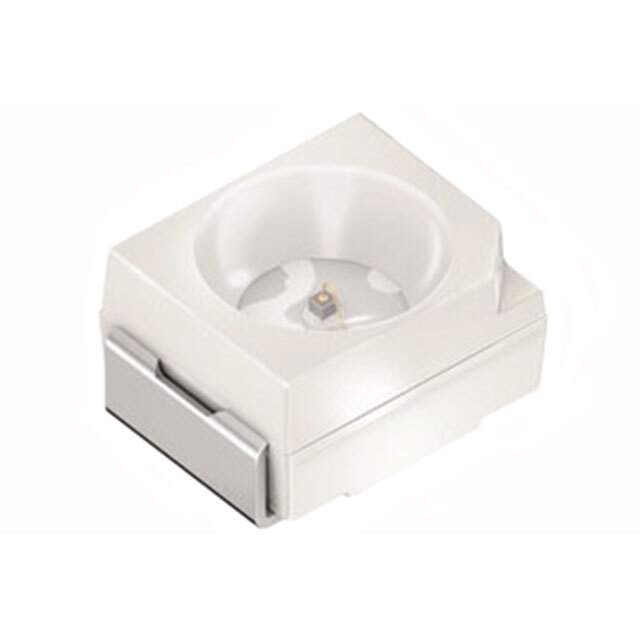

SFH 4243-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 4243-Z

Part No SFH 4243-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 950NM 70MA 3.20MM SMD / Infrared (IR) Emitter 950nm 1.6V 70mA 4mW/sr @ 70mA 120° 2-PLCC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Series TOPLED
Package Tape & Reel
Type Infrared (IR)
Current - DC Forward (If) (Max) 70mA
Radiant Intensity (Ie) Min @ If 4mW/sr @ 70mA
Wavelength 950nm
Voltage - Forward (Vf) (Typ) 1.6V
Viewing Angle 120°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting SMD (SMT)
Package / Case 2-PLCC
Base Product Number SFH4243
Other Names 475-2866-2,SFH 4243-Z,475-2866-1,Q65110A7515,SFH4243,SFH 4243,SFH4243-Z,475-2866-6,SFH4243Z
Standard Package 2,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242395-SFH 4243-Z
Ultra Librarian 3D Model Ultra Librarian SFH 4243-Z CAD Model

Description

The TOPLED Infrared (IR) from ams-OSRAM USA Inc. is a surface-mount device with a viewing angle of 120 degrees.

  • Mounting: Surface-mount
  • Viewing Angle: 120 degrees
  • Standard Package: 2,000
  • Dimension: 4.60mm x 4.60mm
  • Maximum Current: 70mA
  • Forward Voltage: 1.6V
  • Package: Tape and reel
  • Temperature Range: -40 degrees Celsius to 100 degrees Celsius
  • Wavelength: 950nm
  • Radiant Intensity: 4mW/sr @ 70mA
  • REACH Status: REACH Unaffected
