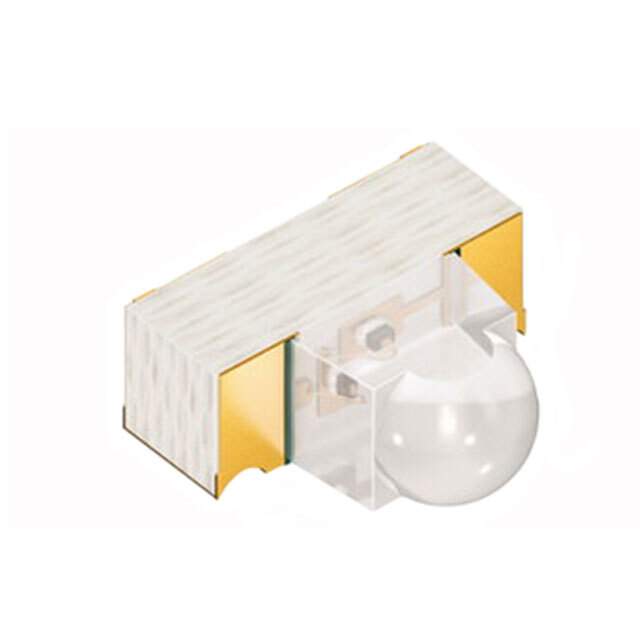

SFH 4045N-VAW Real Image
Same model may have multiple batches, images only for reference.

SFH 4045N-VAW

Part No SFH 4045N-VAW
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 950NM 70MA SIDELOOK / Infrared (IR) Emitter 950nm 1.6V 70mA 63mW/sr @ 70mA 18° 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Series CHIPLED
Package Tape & Reel (TR)
Type Infrared (IR)
Current - DC Forward (If) (Max) 70mA
Radiant Intensity (Ie) Min @ If 63mW/sr @ 70mA
Wavelength 950nm
Voltage - Forward (Vf) (Typ) 1.6V
Viewing Angle 18°
Orientation Side View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount, Right Angle
Package / Case 2-SMD, No Lead
Base Product Number SFH4045
Other Names SFH4045N-VAW,Q65111A8147,SFH 4045N-VAW
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242430-SFH 4045N-VAW
Ultra Librarian 3D Model Ultra Librarian SFH 4045N-VAW CAD Model

Description

The SFH 4045N-VAW is a CHIPLED infrared (IR) LED emitter from ams-OSRAM USA Inc.

  • Viewing Angle: 18 degrees
  • Wavelength: 950nm
  • Radiant Intensity (Ie) minimum @ If: 63mW/sr @ 70mA
  • Maximum Forward Current (If): 70mA
  • Voltage Forward (Vf): 1.6V (typical)
  • Mounting: mounted on a surface with a right-angle orientation
  • Package: 2-SMD, no lead
  • Operating Temperature Range: -40°C to 85°C (TA)
  • REACH: unaffected
  • ECCN: EAR99
  • SFH 4045N-VAW: ideal for various applications, including remote controls, security systems, and industrial automation.
