SM10B-ZPDSS-TF(LF)(SN)

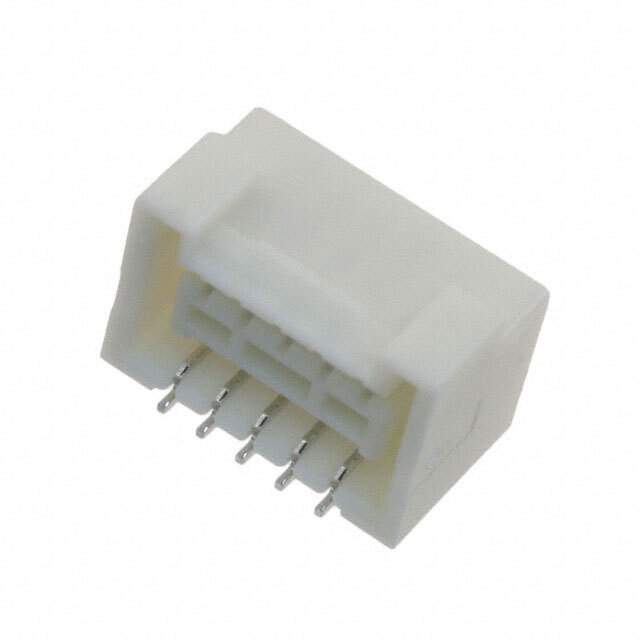

Name: SM10B-ZPDSS-TF(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1293232
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SM10B-ZPDSS-TF(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Datasheet	SM10B-ZPDSS-TF(LF)(SN) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	ZPD
Package	Tape & Reel
Connector Type	Header
Contact Type	Outer Shroud Contact
Pitch - Mating	0.059" (1.50mm)
Number of Positions	10
Number of Rows	2
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.309" (7.85mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	2A
Voltage Rating	100V
Base Product Number	SM10B-ZP
Other Names	SM10BZPDSSTFLFSN,455-2551-6,SM10B-ZPDSS-TF (LF)(SN),455-2551-1,455-2551-2
Standard Package	700
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293232-SM10B-ZPDSS-TF(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian SM10B-ZPDSS-TF(LF)(SN) CAD Model

Alternative Products

Description

The JST Sales America Inc. 1293232-SM10B-ZPDSS-TF(LF)(SN) is a 10-position rectangular connector header with a 2-row design.

Product Name: 1293232-SM10B-ZPDSS-TF(LF)(SN)
Positions: 10
Rows: 2
Termination: Solder
Contact Material: Copper Alloy
Connector Type: Header
Contact Type: Outer Shroud Contact
Fastening Type: Locking Ramp
Voltage Rating: 100V
Insulation Material: Polyamide (PA), Nylon
Material Flammability Rating: UL94 V-0
Applications: Board-to-cable/wire
Pitch-Mating: 0.059 inches (1.50mm)
Contact Finish: Tin
Temperature Range: -25°C to 85°C
RoHS Compliant: Yes
Standard Package: 700
Mounting: Surface-Mounted, Right Angle
Shrouding: 4 Wall
Insulation Height: 0.309 inches (7.85mm)
