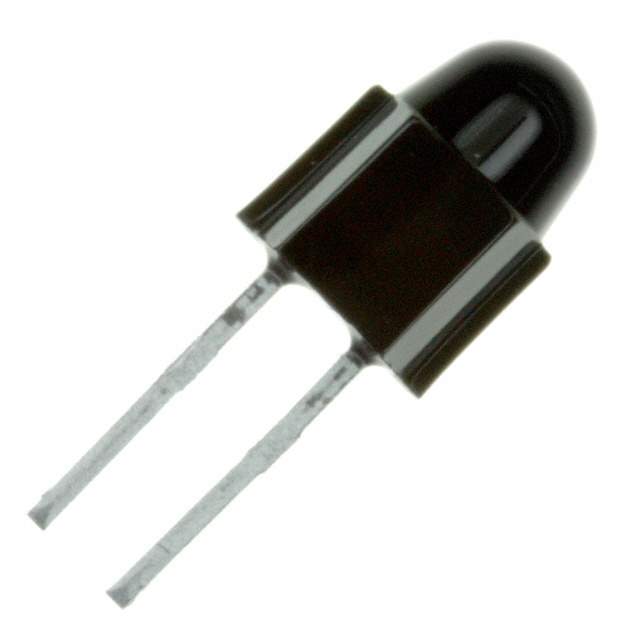

SFH 2505 FA-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 2505 FA-Z

Part No SFH 2505 FA-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 900NM RADIAL / Photodiode 900nm 5ns 30° Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photodiodes
Mfr ams-OSRAM USA Inc.
Package Tape & Reel (TR),Cut Tape (CT)
Wavelength 900nm
Spectral Range 750nm ~ 1100nm
Diode Type PIN
Response Time 5ns
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Dark (Typ) 100pA
Active Area 1mm2
Viewing Angle 30°
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial
Base Product Number SFH 2505
Other Names 475-1436-2,SFH 2505 FA-Z,SFH2505FAZ,475-1436-1,Q65110A1204,SFH 2505 FA,475-1436-6,SFH2505FA,475-1436-6,475-1436,475-1436,SFH2505FA-Z,475-1436-6INACTIVE
Standard Package 1,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1234981-SFH 2505 FA-Z
Ultra Librarian 3D Model Ultra Librarian SFH 2505 FA-Z CAD Model

Description

The SFH 2505 FA-Z 1234981 is a photodiode optical sensor component.

  • Diode Type: PIN
  • Voltage - DC Reverse (Vr) (max): 50V
  • Viewing Angle: 30°
  • Wavelength: 900nm
  • Spectral Range: 750nm ~ 1100nm
  • Current - Dark (typ): 100pA
  • Active Area: 1mm2
  • Mounting Type: Through Hole
  • Package/Case: Radial
  • Temperature Range for Operating: -40°C ~ 85°C
  • REACH: Unaffected
  • HTSUS: 8541.49.1050
  • Manufacturer: ams-OSRAM USA Inc.
