Same model may have multiple batches, images only for reference.

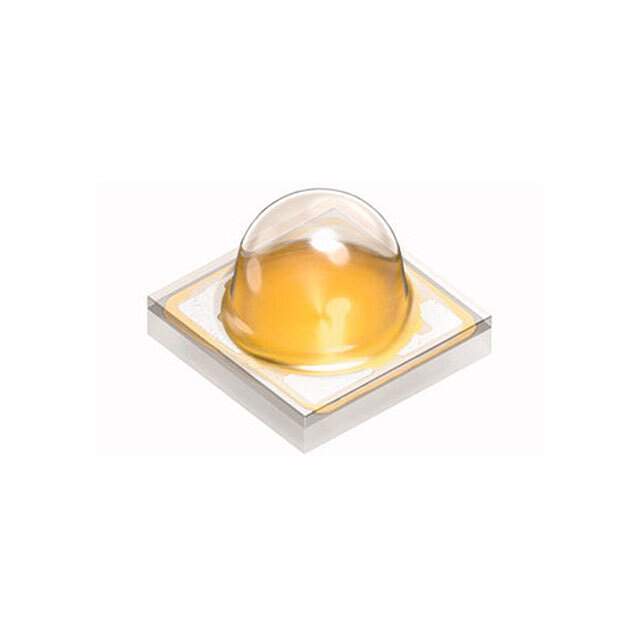

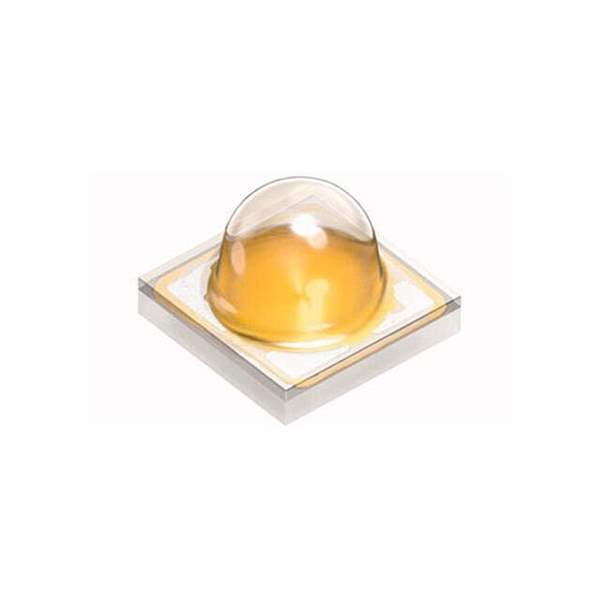

LUW CQ7P-LPLR-5E8G-1K Real Image
Same model may have multiple batches, images only for reference.

LUW CQ7P-LPLR-5E8G-1K

Part No LUW CQ7P-LPLR-5E8G-1K
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog OEM Parts (J - L)
Description LED Uni-Color White 2-Pin CSMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Color White
Color Rendering Index (CRI) 70
Forward Current 350 mA
Forward Voltage 3.2 V
Height 2.23 mm
Illumination Color White
Length 3 mm
Lens Style Circular
Luminous Flux 130 lm
Luminous Intensity 65 cd
Max Current Rating 1 A
Maximum Operating Temperature 120 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of LEDs 1
Number of Pins 2
Packaging Tape & Reel (TR)
RoHS Compliant
Schedule B 8541402000
Test Current 350 mA
Viewing Angle 80 °
Width 3 mm
Win Source Part Number 1073009-LUW CQ7P-LPLR-5E8G-1K
Categories OEM Parts(J-L)
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LUW CQ7P-LPLR-5E8G-1K CAD Model

Description

The LUW CQ7P-LPLR-5E8G-1K from OSRAM Opto Semiconductors Inc. is a surface mount LED.

  • Forward Voltage: 3.2V
  • Luminous Intensity: 65 cd
  • LED Color: White
  • Viewing Angle: 80 degrees
  • Luminous Flux: 130 lm
  • Part Type: Low popularity OEM part
  • Supply and Demand Status: Shortage
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 120 degrees Celsius
