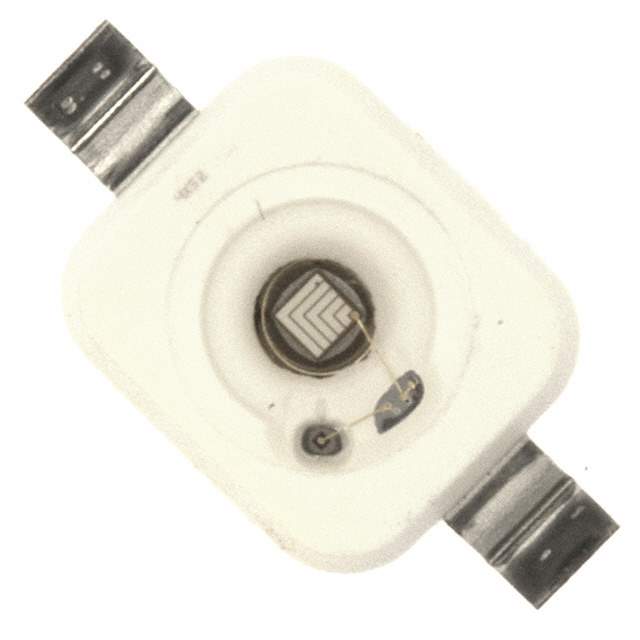

The LT W5SM-JXKX-36 is a high-performance LED from OSRAM Opto Semiconductors. This LED is designed for applications requiring high brightness, efficiency, and reliability. It's commonly used in various lighting and signaling applications due to its robust performance characteristics and compact size.

Applications

• Automotive lighting (e.g., daytime running lights, signal lights)
• Indoor and outdoor general lighting
• Architectural lighting
• Electronic signs and displays
• Backlighting for LCDs
• Specialty lighting

Features

• High luminous flux: Provides intense light output for excellent visibility.
• High efficiency: Converts electrical energy into light efficiently, reducing power consumption.
• Compact package: Allows for dense packing and integration into space-constrained designs.
• Long lifespan: Offers extended operational life, reducing maintenance and replacement costs.
• Wide viewing angle: Provides uniform light distribution over a broad area.
• Robust design: Withstands harsh environmental conditions, ensuring reliable performance.
• Low thermal resistance: Facilitates efficient heat dissipation, improving performance and lifespan.

Benefits

• Improved visibility: High light output enhances safety and aesthetics in various applications.
• Energy savings: High efficiency reduces power consumption and lowers operating costs.
• Design flexibility: Compact package allows for creative and space-saving designs.
• Reduced maintenance: Long lifespan minimizes the need for replacements, saving time and money.
• Consistent performance: Wide viewing angle and robust design ensure reliable operation under diverse conditions.

Technical Specifications

The LT W5SM-JXKX-36 typically offers a high luminous flux, specified in lumens (lm), contributing to its high brightness. The forward voltage typically ranges from 2.8V to 3.6V, and the forward current is typically around 20mA to 30mA. The exact values vary based on the drive current and temperature. The LED emits light within a specific color range, defined by its correlated color temperature (CCT) or wavelength. The viewing angle, often around 120 degrees, contributes to uniform light distribution. The thermal resistance is designed to be low to manage heat effectively. The operating temperature range is typically from -40°C to +85°C.

The LT W5SM-JXKX-36 from OSRAM is a reliable and efficient LED solution, suitable for demanding applications where high brightness and long lifespan are essential. Its compact size and robust design make it a versatile choice for various lighting and signaling needs.
