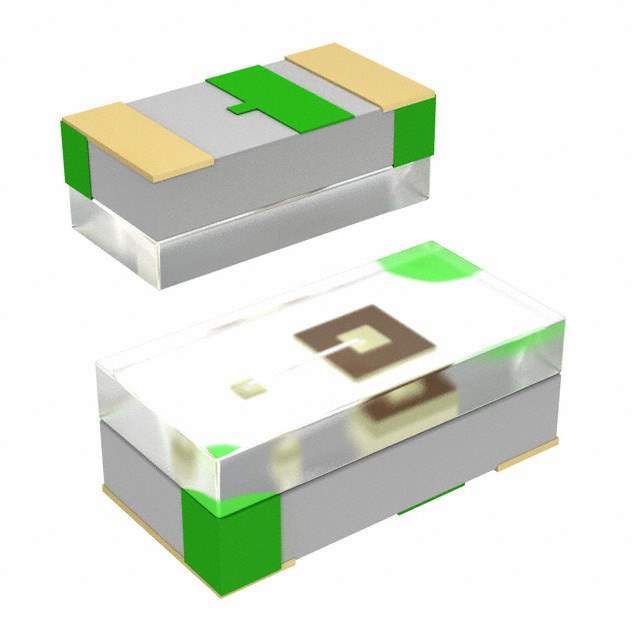

Same model may have multiple batches, images only for reference.

LR VH9F-P2R1-1-Z

Name: LR VH9F-P2R1-1-Z
Brand: OSRAM Opto Semiconductors Inc.
SKU: 1004086
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	LR VH9F-P2R1-1-Z
Manufacturer	OSRAM Opto Semiconductors Inc.
Catalog	LED Indication - Discrete
Description	LED RED DIFFUSED 0402 R/A SMD / Red 625nm LED Indication - Discrete 2V 2-SMD, No Lead
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	ams-OSRAM USA Inc.
Series	FIREFLY®
Package	Tape & Reel
Color	Red
Configuration	Standard
Lens Color	White
Lens Transparency	Diffused
Millicandela Rating	98mcd
Lens Style	Rectangle with Flat Top
Lens Size	1.00mm x 0.33mm
Voltage - Forward (Vf) (Typ)	2V
Current - Test	5mA
Viewing Angle	140°, 165°
Mounting Type	Surface Mount, Right Angle
Wavelength - Dominant	625nm
Wavelength - Peak	632nm
Package / Case	2-SMD, No Lead
Supplier Device Package	0402
Dimension	1.00mm L x 0.55mm W
Height (Max)	0.35mm
Base Product Number	LRVH9F
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Other Names	LRVH9F-P2R1-1-Z,LRVH9FP2R11Z,475-3429-1,LRVH9F-P2R1-1,475-3429-2,LRVH9FP2R11,LR VH9F-P2R1-1,LR VH9F-P2R1-1-Z-ND,475-3429-6,Q65110A8088
Standard Package	4,000
Win Source Part Number	1004086-LR VH9F-P2R1-1-Z
Ultra Librarian 3D Model	Ultra Librarian LR VH9F-P2R1-1-Z CAD Model

Alternative Products

Description

The electronic component with the Win Source Part Number 1004086-LR VH9F-P2R1-1-Z is a FIREFLY® series LED indication product from OSRAM Opto Semiconductors Inc.

Color: Red
Viewing Angle: 140°, 165°
Package: Tape & Reel
Standard Package: 4,000
Mounting Type: Surface Mountable with Right-Angle Mounting
Lens Color: White
Lens Transparency: Diffused
Millicandela Rating: 98mcd
Forward Voltage: 2V (Typ)
Test Current: 5mA
Peak Wavelength: 632nm
Height: 0.35mm
Package/Case: 2-SMD, no lead
