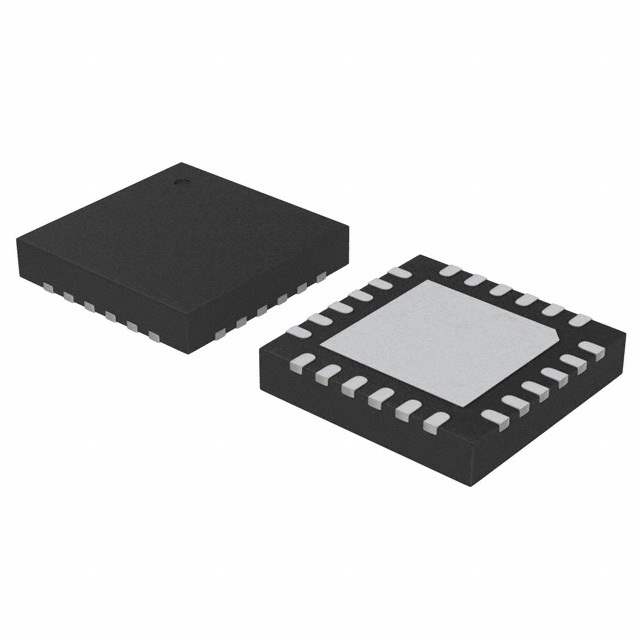

AS3682 Real Image
Same model may have multiple batches, images only for reference.

AS3682

Part No AS3682
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR 400MA 24QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr OSRAM Opto Semiconductors Inc.
Package Tube
Product Status Obsolete
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 6
Voltage - Supply (Min) 3V
Voltage - Supply (Max) 5.5V
Voltage - Output 5.3V
Current - Output / Channel 400mA (Flash)
Frequency 1MHz
Applications Backlight, Camera Flash
Temperature Range - Operating -30°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 24-VFQFN Exposed Pad
Supplier Device Package 24-QFN (4x4)
Base Product Number AS3682
Standard Package 75 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 564683-AS3682
Ultra Librarian 3D Model Ultra Librarian AS3682 CAD Model

Description

The AS3682 is a DC-DC regulator integrated circuit designed for power management in LED driver applications, such as backlight and camera flash. Bold the product name (e.g., BAV99S,135 → AS3682) and manufacturer (e.g., Nexperia USA Inc. → OSRAM Opto Semiconductors Inc.).

  • Voltage Output: 5.3V
  • Frequency: 1MHz
  • Current Output: 400mA for flash applications
  • Features: Internal switches for efficient power conversion
  • Topology: Switched capacitor (charge pump) configuration
  • Outputs: Six
  • Package: Surface mount
  • Series: AS3682 series
  • Package Type: Tube
  • Standard Quantity: 75 pieces
  • Note: This product is now obsolete, but it remains a suitable choice for backlight and camera flash applications.
