Same model may have multiple batches, images only for reference.

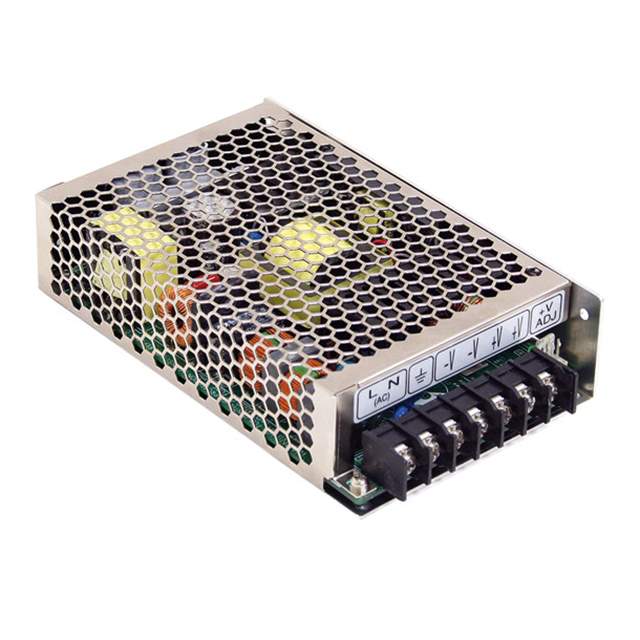

HRP-100-5 Real Image
Same model may have multiple batches, images only for reference.

HRP-100-5

Part No HRP-100-5
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 5V 85W / Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
HRP-100-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr MEAN WELL USA Inc.
Series HRP-100 (100W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 5V
Current - Output 1 17 A
Power (Watts) 85W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 83%
Temperature Range - Operating -40°C ~ 60°C (With Derating)
Features Adjustable Output, PFC, Remote On/Off, Universal Input
Mounting Type Chassis Mount
Dimension 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm)
Approval Agency CB, CE, cURus, TUV
Minimum Load Required No
Base Product Number HRP-100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names HRP-100-5-ND,1866-2702
Standard Package 24
Win Source Part Number 1062915-HRP-100-5
Ultra Librarian 3D Model Ultra Librarian HRP-100-5 CAD Model

Description

The HRP-100-5 is a 100W enclosed AC/DC converter designed for power supplies - external/internal (off-board).

  • Features: Adjustable output, PFC, remote on/off, and universal input
  • Applications: ITE (Commercial)
  • Voltage Input: 85 ~ 264 VAC and 120 ~ 370 VDC
  • Voltage Isolation: 3 kV
  • Output Voltage: 5V
  • Efficiency: 83%
  • Current Output: 17 A
  • Mounting: Chassis mountable
  • Temperature Range: -40°C ~ 60°C
  • Dimensions: 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm)
  • Approvals: CB, CE, cURus, and TUV
