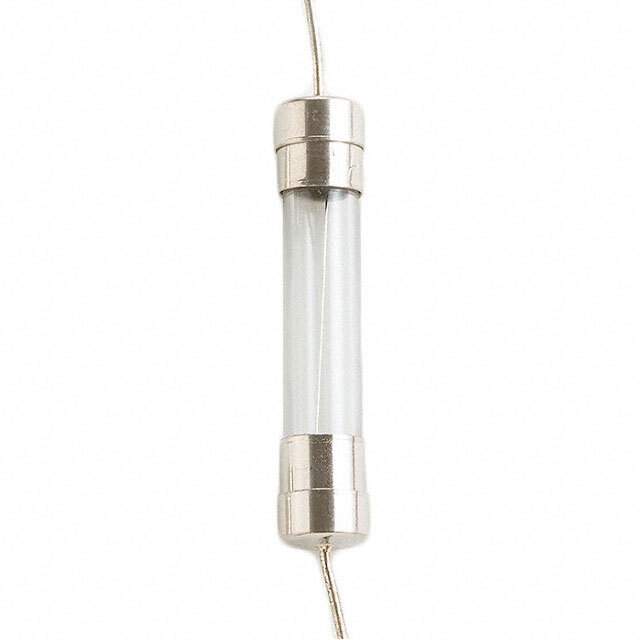

TSA-P-15A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr OptiFuse
Series TSA
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Glass
Current Rating (Amps) 15 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 200A
Melting I2t 5561
Approval Agency PSE/JET, UR
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.270" Dia x 1.276" L (6.85mm x 32.40mm)
Base Product Number TSA-P
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8535.10.0040
Other Names 2298-TSA-P-15A
Standard Package 1
Win Source Part Number 1113609-TSA-P-15A
Ultra Librarian 3D Model Ultra Librarian TSA-P-15A CAD Model

Description

The TSA-P-15A is a slow-blow glass cartridge fuse from OptiFuse, designed for circuit protection applications.

  • Current Rating: 15A
  • Voltage Rating: 250V AC
  • Breaking Capacity @ Rated Voltage: 200A
  • Melting I2t: 5561
  • Package: 3AB, 3AG, 1/4" x 1-1/4" (Axial)
  • Dimension: 0.270 inches Dia x 1.276 inches L
  • Mounting: Through-hole
  • Response Time: Slow-blow
  • Approval Agency Standards: PSE/JET and UR
  • Lead-Free: Yes
  • RoHS Compliant: Yes
