Same model may have multiple batches, images only for reference.

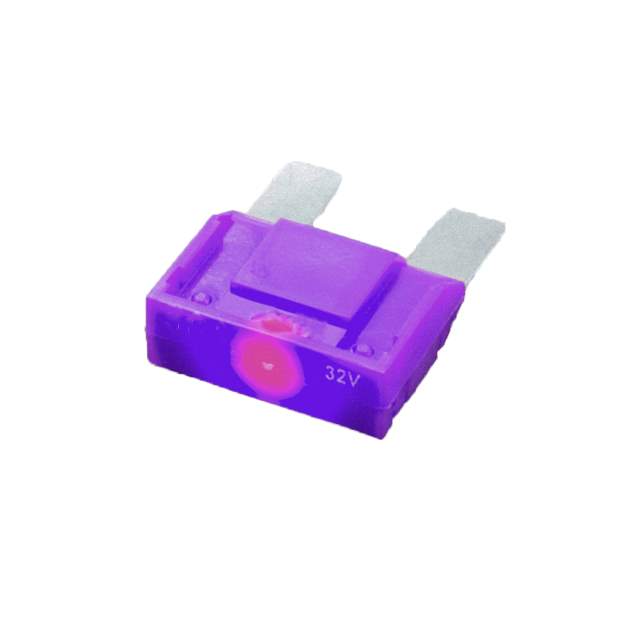

ANX-I-100A Real Image
Same model may have multiple batches, images only for reference.

ANX-I-100A

Part No ANX-I-100A
Manufacturer OptiFuse
Catalog Fuses
Description FUSE AUTO 100A 32VDC BLADE MAX / 100 A AC 32 V DC Fuse Automotive Holder Blade, Max
Datasheet
ANX-I-100A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr OptiFuse
Series ANX-I
Package Bulk
Mounting Type Holder
Fuse Type Automotive
Current Rating (Amps) 100 A
Voltage Rating - DC 32 V
Package / Case Blade, Max
Breaking Capacity @ Rated Voltage 1kA
Approval Agency ISO8820, SAE
Color Violet
Dimension 1.142" L x 0.350" W x 0.850" H (29.00mm x 8.90mm x 21.60mm)
Base Product Number ANX-I
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8535.10.0040
Other Names 2298-ANX-I-100A
Standard Package 1
Win Source Part Number 1155694-ANX-I-100A
Ultra Librarian 3D Model Ultra Librarian ANX-I-100A CAD Model

Description

The ANX-I series is a fuse type product from OptiFuse.

  • Win Source Part Number: 1155694-ANX-I-100A
  • Color: Violet
  • Package: Bulk
  • Fuse Type: Automotive
  • Voltage Rating - DC: 32 V
  • Breaking Capacity @ Rated Voltage: 1kA
  • Standard Package: 1
  • Mounting Type: Holder
  • Package/Case: Blade, Max
  • Current Rating (Amps): 100 A
  • Operating Temperature Range: Not Specified
  • Dimension: 1.142" L x 0.350" W x 0.850" H (29.00mm x 8.90mm x 21.60mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8535.10.0040
  • Approval Agency: ISO8820, SAE
