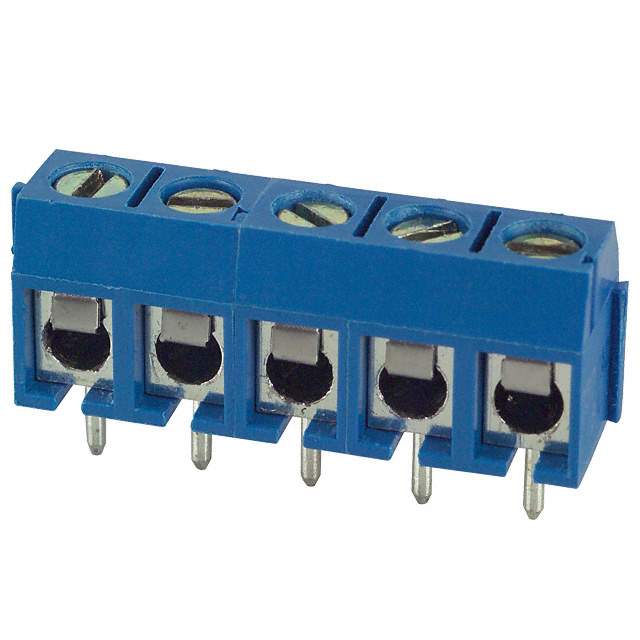

ED500/5DS Real Image
Same model may have multiple batches, images only for reference.

ED500/5DS

Part No ED500/5DS
Manufacturer On Shore Technology Inc.
Catalog Terminal Blocks
Description TERMINAL BLOCK 5MM 5POS PCB
Datasheet
ED500/5DS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer On Shore Technology Inc.
Packaging Bulk
Status Active
Number of Levels 1
Positions Per Level 5
Pitch 0.197" (5.00mm)
Mating Orientation Horizontal with Board
Current 15A
Voltage 300V
Wire Gauge 14-22 AWG
Mounting Through Hole
Wire Termination Screw - Leaf Spring, Wire Guard
Color Blue
Temperature Range - Operating -30°C to 105°C
Housing Material Polyamide (PA), Nylon
Contact Material - Plating Brass
Clamp Material - Plating Steel, Stainless
Screw Thread M2.6
Win Source Part Number 1032239-ED500/5DS
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ED500/5DS CAD Model

Description

This On Shore Technology Inc. connector is a horizontal with board type with 5 positions per level and a 0.197" (5.00mm) pitch.

  • Manufacturer: On Shore Technology Inc.
  • Orientation: Horizontal with board
  • Positions per Level: 5
  • Pitch: 0.197" (5.00mm)
  • Termination Style: Screw
  • Wire Gauge: 14-22 AWG
  • Voltage Rating: 300V
  • Housing Material: Polyamide (PA) or nylon
  • Mounting Style: Through-hole
  • Temperature Range: -30°C to 105°C
  • Application: Electronic applications requiring high voltage and current ratings
