The W02G is a highly efficient and robust rectifier diode designed and manufactured by ON Semiconductor, a leader in the field of energy-efficient innovations. This device is tailored to meet the needs of electronic applications requiring rectification and power control. The W02G is part of ON Semiconductor's comprehensive range of rectifiers, known for their reliability and performance.
Key Features
- Voltage Range: The W02G offers a peak repetitive reverse voltage (V<sub>RRM) of 200 volts, making it suitable for a variety of applications in both commercial and industrial environments.
- Current Rating: With an average rectified forward current (I<sub>o) of 1.5 amperes at ambient temperature, this diode can handle moderate power requirements with ease.
- Surge Current: It features a non-repetitive peak surge current (I<sub>FSM) of 50 amperes, ensuring the device can withstand high current spikes without damage.

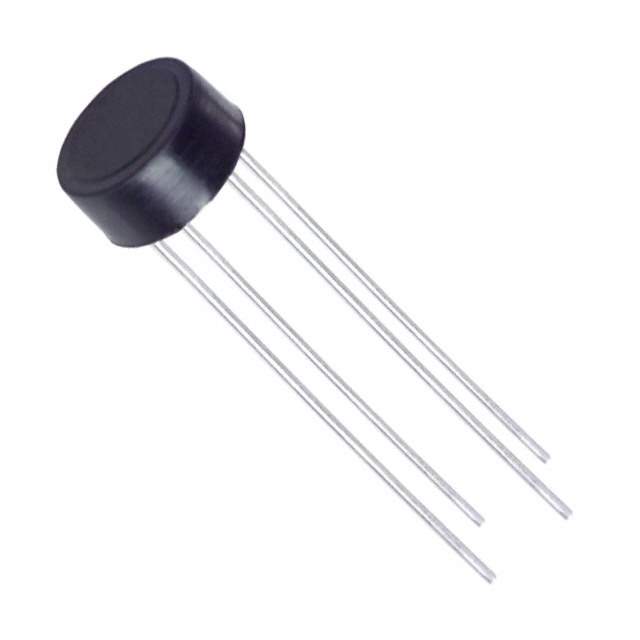

- Package: Encased in a moldable plastic package, the W02G is designed for through-hole mounting, which facilitates easy installation and soldering onto circuit boards.
- High Efficiency: The diode's low forward voltage drop promotes high efficiency, which is crucial for minimizing energy loss in power conversion processes.
Applications
The W02G is a versatile component suitable for a wide range of applications, including:
- Power supplies
- Adapters
- Converters
- Free-wheeling diodes in various configurations
- Reverse voltage protection circuits
Environmental and Safety Compliance
ON Semiconductor is committed to environmental stewardship and ensuring that its products meet rigorous safety standards. The W02G is no exception, complying with RoHS (Restriction of Hazardous Substances) directives, which limits the use of certain hazardous materials in electronic equipment. Additionally, this diode is designed to meet or exceed industry standards for performance and reliability.
Conclusion
With its combination of voltage capacity, current rating, and surge current protection, the W02G from ON Semiconductor is an excellent choice for designers looking for a reliable and efficient rectifier diode. Its compliance with environmental standards also makes it a responsible choice for companies aiming to reduce their ecological footprint.
