Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Tube/Rail
Status Active
Motor Type - Stepper Unipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Power MOSFET
Step Resolution 1, 1/2
Applications General Purpose
Output Current 2.2A
Supply Voltage - Operating 4.75 V to 5.25 V
Voltage - Load 0 V to 42 V
Temperature Range - Operating 0°C to 105°C (TC)
Mounting Through Hole
Case / Package 19-SIP
Win Source Part Number 142831-STK672-630AN-E
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STK672-630AN-E CAD Model

Description

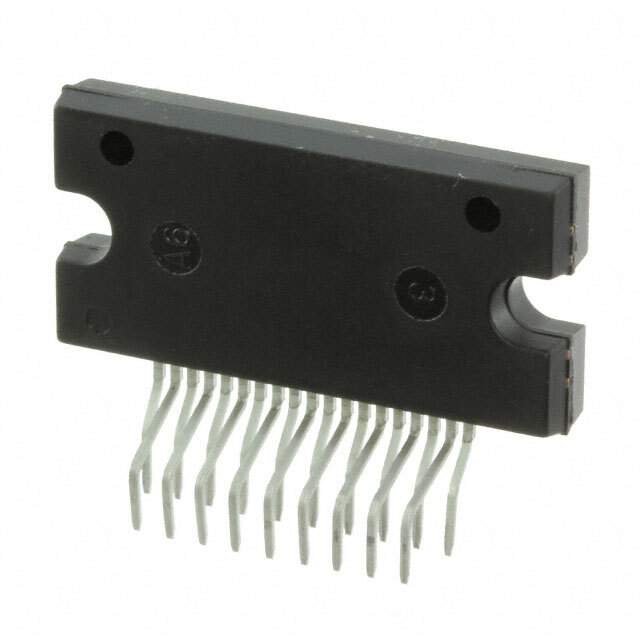

ON Semiconductor STK672-630AN-E Stepper Motor Driver

The STK672-630AN-E is a highly-integrated stepper motor driver module manufactured by ON Semiconductor, designed to deliver exceptional performance and reliability for a wide range of motor driving applications. This compact, hybrid IC enables precise control of stepper motor motion with its advanced features and robust design.

At the heart of the STK672-630AN-E lies a unipolar, 2-phase stepper motor driver which can drive motors with a wide range of operating voltages, typically from 10V to 35V. This makes it suitable for various applications such as office automation machines, factory automation equipment, and other precision motor control scenarios where space and power efficiency are critical.

The driver module is capable of output currents up to 2A, allowing it to handle a broad spectrum of stepper motors from small to medium power requirements. With its built-in micro-stepping controller, the STK672-630AN-E can achieve smooth and precise motor movements, which is crucial for applications that require fine positioning and smooth motion profiles.

One of the key features of this motor driver is its high levels of integration. The STK672-630AN-E incorporates a dual H-bridge driver circuit, a clock oscillator, and a 10-bit DAC for current control, all within a single package. This not only simplifies the design and reduces the footprint on the PCB but also enhances system reliability by minimizing the number of external components required.

Another advantage of the STK672-630AN-E is its thermal shutdown feature, which protects the IC from overheating by automatically shutting down the output stages if the chip's temperature exceeds a safe threshold. This, along with its overcurrent protection feature, ensures long-term reliability and safe operation under various conditions.

For ease of use, the STK672-630AN-E includes a simple step and direction interface, which allows designers to easily implement motor control functions without complex programming. This interface is compatible with most microcontrollers, making it a versatile choice for integrating into existing designs.

In summary, the ON Semiconductor STK672-630AN-E stepper motor driver is an excellent solution for designers looking for a high-performance, easy-to-use, and reliable motor control IC. With its advanced features and protective functions, it stands out as a top choice for driving stepper motors in a variety of industrial and commercial applications.
