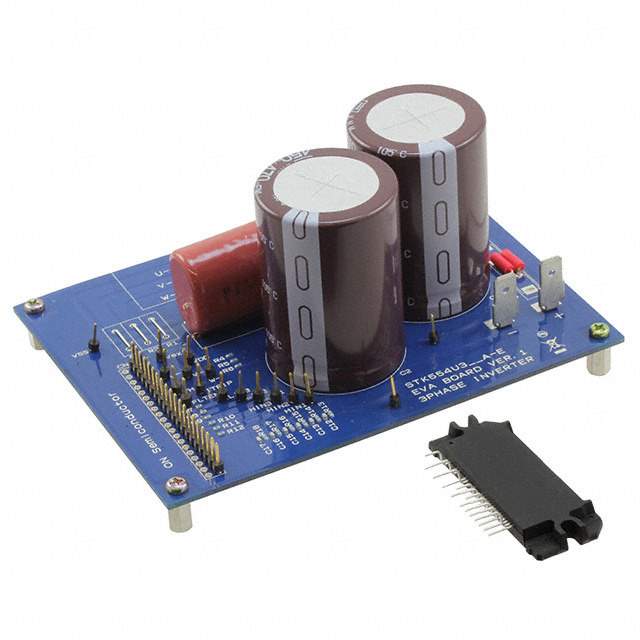

ON Semiconductor STK554U362AGEVB Evaluation Board

The STK554U362AGEVB from ON Semiconductor is a comprehensive evaluation platform designed for testing the performance and capabilities of the STK554U362A Power Integrated Module (IPM). This evaluation board provides an exceptional opportunity for engineers and developers to explore the features of this advanced power module in various motor control applications, including but not limited to, air conditioners, washing machines, refrigerators, and industrial machinery.

The STK554U362A IPM integrated into the evaluation board is a highly efficient inverter power module that utilizes ON Semiconductor's leading-edge Insulated Metal Substrate Technology (IMST). It is capable of delivering a high voltage of up to 600V and a current of 10A. The module features built-in overcurrent, overtemperature, and under-voltage lockout protection circuits, which ensure safe operation under a wide range of conditions.

The evaluation board itself is user-friendly, with a layout that makes it easy to connect to external control circuits and power supplies. It includes onboard heat sinking for thermal management and provides convenient test points for monitoring the electrical parameters of the IPM. Additionally, it comes with screw terminals for straightforward motor connections and power supply inputs.

Key features of the STK554U362AGEVB include:

• Integrated bootstrap diodes for the high-side drive function
• Short-circuit rated IGBTs for rugged performance
• Single power supply operation with built-in bootstrap circuit
• Isolation between the high-power and low-power circuitry for enhanced safety
• LED indicators for fault status and power-on condition

For developers looking to accelerate their design cycle and reduce time-to-market, the STK554U362AGEVB evaluation board is an invaluable tool. It not only simplifies the testing process but also provides deep insights into the operation of the STK554U362A IPM, paving the way for optimized and reliable end-product designs.

With its robust design and comprehensive feature set, the ON Semiconductor STK554U362AGEVB Evaluation Board is the perfect choice for professionals seeking to harness the power and versatility of the STK554U362A IPM in their motor control projects.
