Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr onsemi
Package Bulk
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 30 ns
Current - Reverse Leakage @ Vr 1 mA @ 30 V
Mounting Type Through Hole

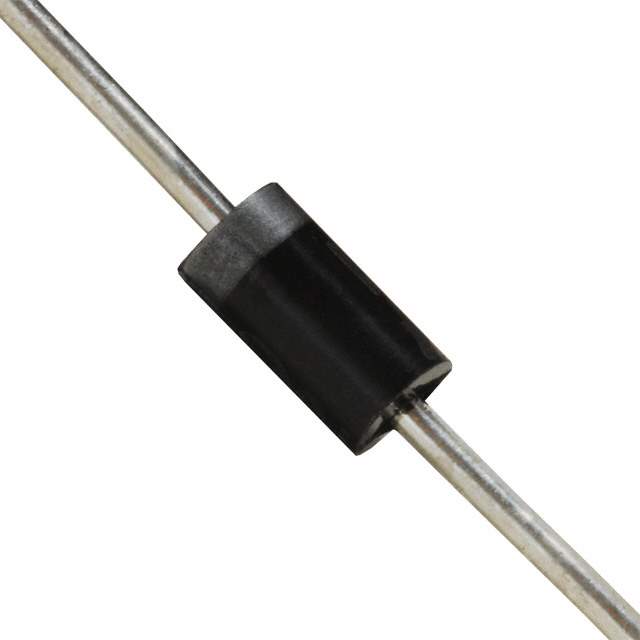

Package / Case DO-204AL, DO-41, Axial
Supplier Device Package DO-41
Operating Temperature - Junction 125°C (Max)
Base Product Number SB10
Other Names ONSONSSB10-03A3,2156-SB10-03A3-ON
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282243-SB10-03A3
Ultra Librarian 3D Model Ultra Librarian SB10-03A3 CAD Model

Description

The ON Semiconductor SB10-03A3 is a high-performance Schottky Barrier Diode designed to deliver efficient, reliable performance in a variety of applications. This diode is particularly well-suited for high-frequency rectification and freewheeling applications in switching power supplies and other power conversion systems.

Key Features:

  • Low Forward Voltage Drop: The SB10-03A3 features a low forward voltage drop, which enhances system efficiency by minimizing power losses during conduction.
  • High Surge Current Capability: Engineered to withstand high surge currents, this diode is ideal for applications that may experience occasional surges or spikes in current.
  • Fast Switching Speed: The fast switching capability of the SB10-03A3 makes it an excellent choice for high-frequency applications, ensuring minimal switching losses and improved overall performance.
  • Robust Thermal Performance: With its superior thermal characteristics, the SB10-03A3 can operate reliably over a wide temperature range, making it suitable for challenging thermal environments.

Applications:

The ON Semiconductor SB10-03A3 is versatile and can be used in a variety of electronic circuits and systems, including:

  • Switching power supplies
  • DC-DC converters
  • Free-wheeling diodes in inverter circuits
  • Power management devices
  • Automotive applications

Specifications:

  • Package: TO-220
  • Maximum Repetitive Reverse Voltage (Vrrm): 30V
  • Forward Continuous Current (If): 10A
  • Maximum Forward Voltage Drop (Vf) at If: 0.55V
  • Operating Junction Temperature Range: -55°C to +150°C

The ON Semiconductor SB10-03A3 Schottky Barrier Diode is a reliable and cost-effective solution that offers designers the performance and robustness required for demanding electronic applications. Its combination of low forward voltage drop, high surge current capability, and fast switching speed makes it a preferred choice for power conversion and management tasks.
