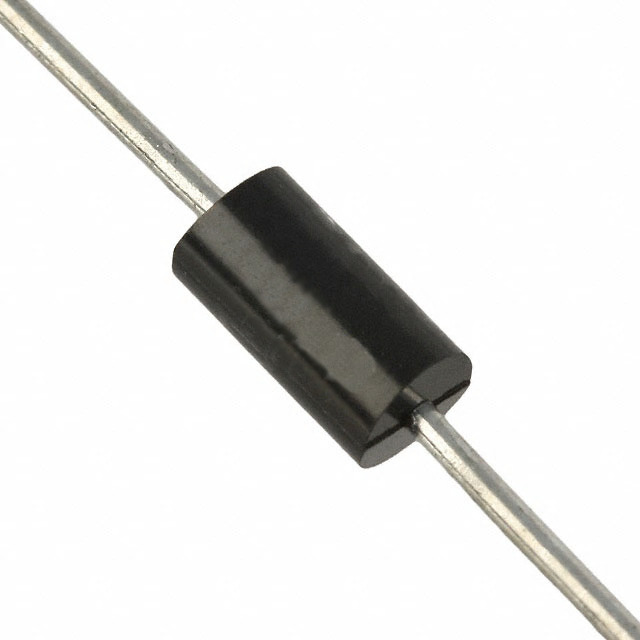

ON Semiconductor SA5V0A - Voltage Suppressor Diode

The ON Semiconductor SA5V0A is a robust transient voltage suppressor diode designed to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and other transient voltage events. This high-performance device is a crucial component for circuit protection in a wide range of applications including consumer electronics, industrial systems, and communication infrastructure.

Key Features

• Stand-Off Voltage: The SA5V0A has a stand-off voltage of 5.0V, making it suitable for protection in many 5V circuits.
• Peak Pulse Power: It can handle a peak pulse power of 500W (10/1000µs waveform), ensuring reliable protection against high energy transients.
• Fast Response Time: With a response time typically less than 1 picosecond from 0V to BV min, the device provides immediate protection against overvoltages, safeguarding sensitive components.
• Low Leakage Current: The SA5V0A is designed to have low leakage current, minimizing power loss and ensuring efficiency in standby or off-state conditions.
• Low Capacitance: This diode has low capacitance, which is ideal for high-frequency applications where signal integrity is paramount.
• Operating Temperature: The device operates effectively within a temperature range of -55°C to +150°C, accommodating a wide variety of environmental conditions.

Applications

The SA5V0A is versatile and can be used in numerous applications to protect against transient overvoltage conditions. Some typical applications include:

• Automotive systems
• Portable devices
• Power supply protection
• Industrial electronics
• Telecommunication systems
• Networking equipment

Quality and Reliability

ON Semiconductor is renowned for its commitment to quality and reliability. The SA5V0A is no exception, as it is manufactured to the highest standards to ensure consistent performance and longevity. It is available in a DO-204AC package, which is known for its robustness and ease of integration into various circuit designs.

With its combination of features, the SA5V0A from ON Semiconductor is an excellent choice for designers looking to enhance the durability and reliability of their electronic systems.
