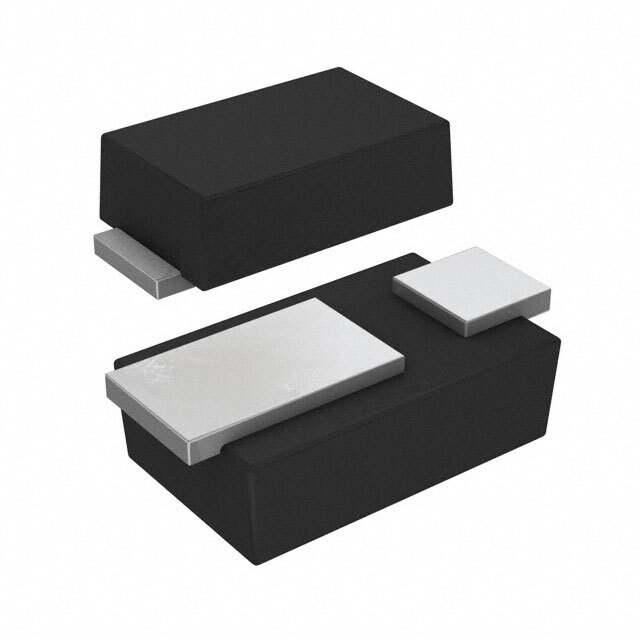

The ON Semiconductor S1JHE is a high-efficiency, surface-mount rectifier designed to provide reliable and robust performance in a wide range of applications. This rectifier is part of ON Semiconductor's extensive portfolio of diodes, designed to offer engineers and designers a balance between cost and performance.
Key Features
- High Surge Capability: The S1JHE rectifier is capable of withstanding high surge currents, making it suitable for applications that experience transient over-voltage conditions.
- Low Forward Voltage Drop: It features a low forward voltage drop, which enhances its efficiency and reduces thermal stress, leading to a longer operational life and reduced energy costs.
- High Reliability: Built with ON Semiconductor's quality manufacturing processes, the S1JHE rectifier offers high reliability and stable performance over time.
- Surface Mount Package: The device comes in a surface mount package that allows for easy integration into PCB designs, saving space and streamlining the manufacturing process.
- RoHS Compliant: The S1JHE is compliant with the Restriction of Hazardous Substances (RoHS) directive, making it an environmentally friendly choice for electronic designs.
Applications
The ON Semiconductor S1JHE rectifier is versatile and can be used in various applications, including:
- Power supply units
- Automotive systems
- Consumer electronics
- Industrial equipment
- Telecommunication systems
Technical Specifications
Parameter
Value
Maximum Repetitive Reverse Voltage
600 V
Average Rectified Forward Current
1 A
Non-Repetitive Peak Forward Surge Current
30 A
Operating Junction Temperature Range
-55°C to +150°C
Package
DO-214AC (SMA)
With its combination of efficiency, reliability, and compact form factor, the ON Semiconductor S1JHE rectifier is an excellent choice for designers looking to enhance the performance and longevity of their electronic products.
