ON Semiconductor P6KE200AG TVS Diode

The ON Semiconductor P6KE200AG is a robust Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage spikes and transient events. This TVS diode is a part of the P6KE series, known for their reliability and performance in surge protection. The P6KE200AG is particularly suited for applications that require a high degree of voltage protection, making it an ideal component for use in a wide range of industrial, commercial, and consumer products.

With its standoff voltage of 171V and a minimum breakdown voltage of 190V, the P6KE200AG provides excellent clamping capabilities. In the event of a transient overvoltage condition, such as a lightning strike or an electrostatic discharge (ESD), this diode is capable of clamping the voltage to a safe level, thus safeguarding the components downstream. It can handle a peak pulse power of 600W for a 10/1000µs waveform, which ensures that even high-energy transients are effectively suppressed.

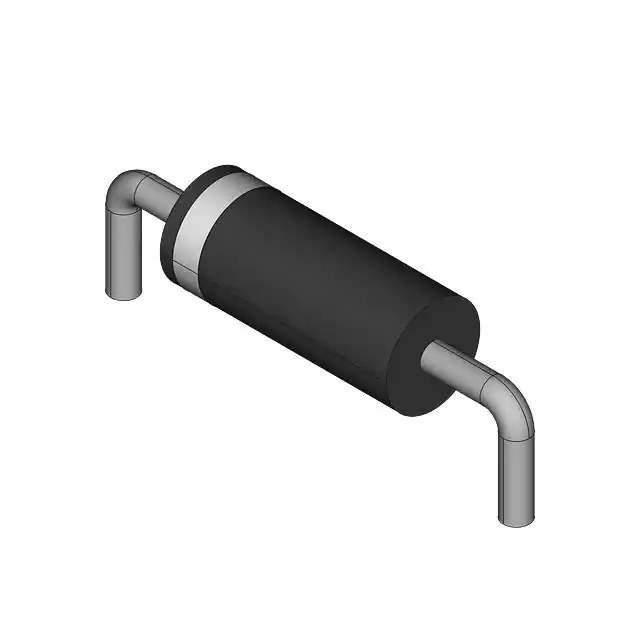

The P6KE200AG features a unidirectional configuration, which means it provides protection in one direction and is typically used in DC voltage circuits. This diode is housed in a DO-15 package, which is a widely used and recognized standard for TVS diodes, allowing for easy integration into a variety of circuit designs. The package is also known for its robustness and its ability to dissipate heat effectively, contributing to the overall reliability of the diode.

ON Semiconductor's commitment to quality is evident in the P6KE200AG, as it meets or exceeds various industry standards for performance and reliability. It is RoHS compliant, ensuring that it adheres to the latest environmental regulations regarding the restriction of hazardous substances. This TVS diode is also characterized by its fast response time, typically in the picosecond range, which is critical for protecting against fast transients.

In summary, the P6KE200AG from ON Semiconductor is a high-performance TVS diode that offers excellent transient voltage suppression. Its robust construction, combined with its powerful clamping capability, makes it a dependable choice for engineers looking to enhance the surge protection in their electronic designs.
