ON Semiconductor NLAS9431MTR2G: Dual SPDT Analog Switch

The NLAS9431MTR2G is a high-performance, dual single-pole double-throw (SPDT) analog switch that is part of ON Semiconductor's advanced switch portfolio. Designed to operate from a single supply voltage ranging from 1.65V to 4.5V, this switch is ideal for portable applications where power efficiency is crucial. Its low on-resistance and low power consumption make it an excellent choice for a wide range of applications, including signal routing, data acquisition systems, and battery-powered devices.

Constructed with sub-micron silicon gate CMOS technology, the NLAS9431MTR2G offers high bandwidth and low charge injection, which ensures minimal distortion and crosstalk during signal switching. This makes it suitable for audio, video, and high-speed data applications. The device is bidirectional and can pass signals from high to low, as well as low to high, with equal proficiency.

Key features of the NLAS9431MTR2G include its break-before-make switching action, which prevents signal overlap and potential short circuits during the transition from one channel to another. Additionally, it boasts an ESD tolerance of ±20 kV, providing robust protection against electrostatic discharges that can occur during handling or operation.

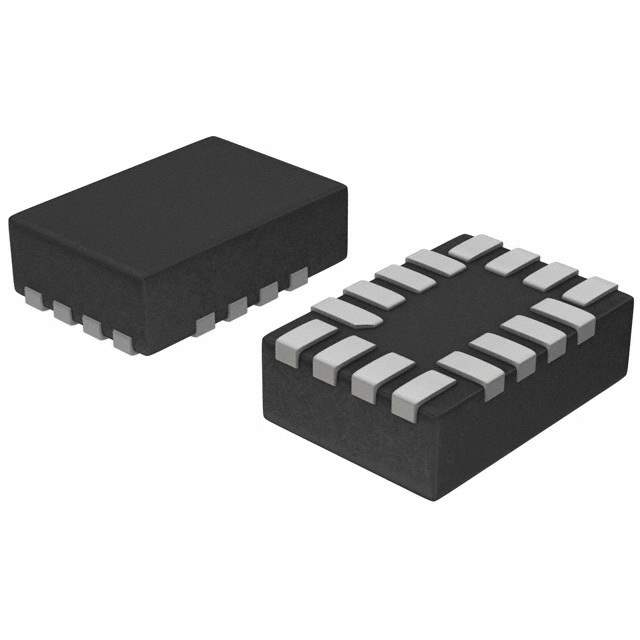

ON Semiconductor's commitment to environmental sustainability is reflected in the NLAS9431MTR2G, which is available in a micro-miniature thin shrink small outline package (TSSOP) with a lead-free finish. This packaging is not only space-saving but also compliant with current RoHS directives, minimizing the environmental impact of electronic components.

For designers and engineers looking for a reliable and efficient analog switch for their next project, the NLAS9431MTR2G from ON Semiconductor is an excellent choice. Its combination of low power consumption, high-speed switching, and compact form factor make it a versatile component for modern electronic designs.

Whether used in mobile phones, PDAs, or other portable devices, the NLAS9431MTR2G ensures seamless and reliable operation, contributing to the overall performance and user experience of the end product.
