The NLAS5123MUR2G from ON Semiconductor is a high-performance, single-pole, double-throw (SPDT) analog switch that is designed to deliver precision switching capabilities for a wide range of applications. This versatile component offers a compact and efficient solution for signal routing in various electronic systems.

Key Features

• Low Voltage Operation: The device operates at a low voltage range from 1.65V to 4.3V, making it suitable for battery-powered and portable devices.
• Low On-Resistance: With a typical on-resistance of just 0.5 ohms, the NLAS5123MUR2G ensures minimal signal distortion and power loss, which is crucial for maintaining signal integrity in analog circuits.
• High Current Handling: The switch can handle continuous current up to 300 mA, which makes it capable of driving moderate loads directly.
• Fast Switching Speed: The device boasts a fast switching time, with a break-before-make interval of 12 ns, ensuring swift and reliable transition between circuits.
• ESD Tolerance: It features an excellent electrostatic discharge (ESD) protection level, which safeguards the device against static electricity damage during handling and operation.

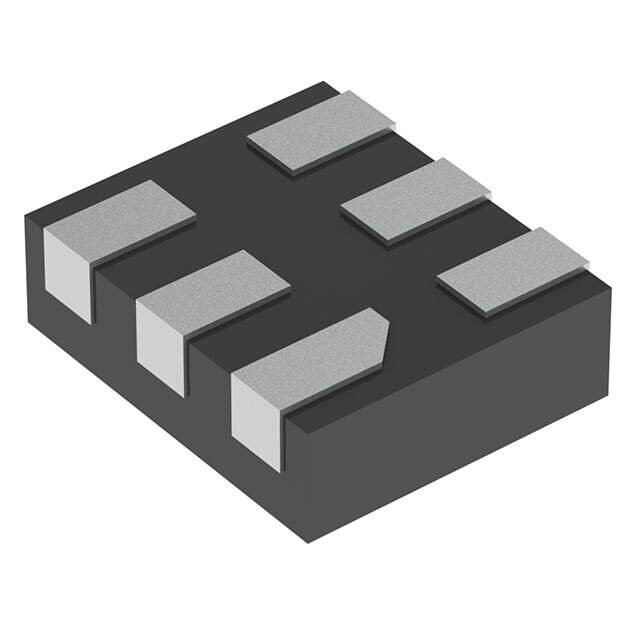

• Ultra-Small Package: The NLAS5123MUR2G comes in a micro-miniature, thin QFN package measuring 1.6 mm x 1.6 mm, making it ideal for space-constrained applications.

Applications

The NLAS5123MUR2G is designed for a broad range of applications where high-speed, low-resistance switching is required. It is particularly well-suited for:

• Audio and video signal routing
• Data acquisition systems
• Sample and hold circuits
• Communication systems
• Portable devices
• Power routing

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the NLAS5123MUR2G is no exception. It is manufactured to the highest standards to ensure reliable performance and longevity in the field. Whether you're designing a consumer electronic device or an industrial system, this analog switch is designed to meet your needs with precision and durability.
