The NLAS3799BMNR2G is a high-performance, low-voltage dual SPDT (Single Pole Double Throw) analog switch designed by ON Semiconductor, a leader in energy-efficient innovations. This switch is tailored for applications requiring efficient routing of analog or digital signals in portable and battery-powered devices.

Key Features

• Low Voltage Operation: The device operates at a supply voltage range of 1.65V to 4.3V, making it ideal for low-voltage applications.
• High Bandwidth: With a bandwidth of 300 MHz, it can handle high-speed signals without significant attenuation, ensuring signal integrity.
• Low On-Resistance: The NLAS3799BMNR2G offers a low on-resistance of typically 0.5 Ohms at 2.7V, which minimizes signal distortion and power loss.
• Low Crosstalk: Crosstalk between channels is minimized, which is crucial for maintaining signal clarity in complex circuits.
• ESD Protection: The device includes built-in ESD protection circuitry, safeguarding it from electrostatic discharges during handling and operation.

Applications

The NLAS3799BMNR2G's versatility makes it suitable for a wide range of applications:

• Audio and video signal routing
• Data acquisition systems
• Communication systems
• Portable consumer electronics
• Medical equipment

Package and Quality

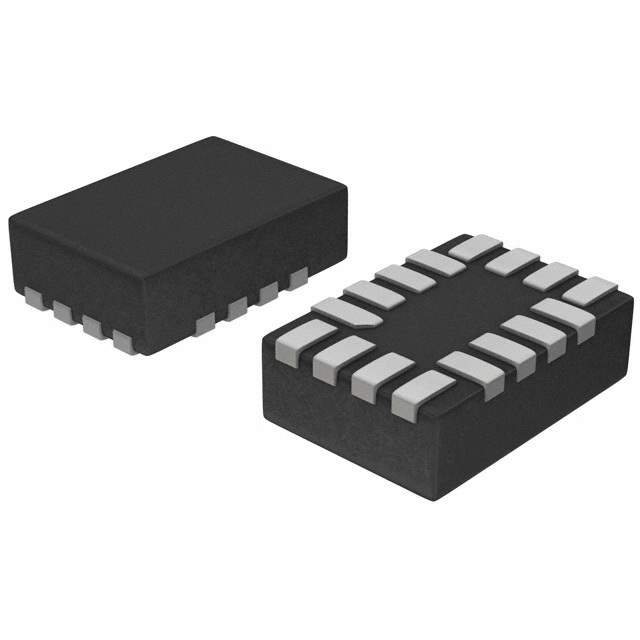

The device comes in a micro-miniature, thin, dual flat no-lead package (µDFN), which is optimal for space-constrained applications. The package is Pb-free, Halide free, and RoHS compliant, reflecting ON Semiconductor's commitment to environmental sustainability. Additionally, the NLAS3799BMNR2G is designed for high durability and reliability, meeting the stringent quality standards expected from ON Semiconductor products.

In summary, the NLAS3799BMNR2G from ON Semiconductor is a robust, high-performance analog switch that offers designers a compact and efficient solution for signal switching in a variety of electronic systems.
