The ON Semiconductor NL27WZ14MU1TCG is a high-performance, dual inverter integrated circuit designed to deliver efficient and reliable logic inversion with a minimal footprint. This advanced technology component is part of ON Semiconductor's extensive range of logic devices, which are renowned for their robustness and precision.

Key Features

• High-Speed Operation: This dual inverter is capable of operating at high speeds, making it suitable for a variety of applications that require rapid signal processing.
• Low Power Consumption: Designed for energy efficiency, the NL27WZ14MU1TCG helps to reduce power consumption in electronic systems, contributing to longer battery life and reduced heat generation.

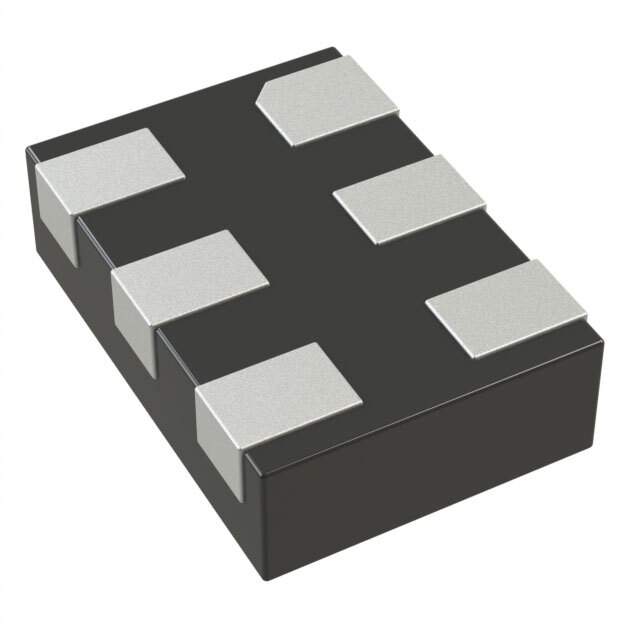

• Ultra-Small Package: The device comes in a micro-miniature, ultra-thin dual flat no-lead (UDFN) package, which makes it ideal for space-constrained applications.
• 5V Tolerant Inputs: Inputs can tolerate up to 5V, even when the device is powered off, providing greater flexibility in mixed-voltage environments.
• Operating Voltage Range: The device supports a broad operating voltage range from 1.65V to 5.5V, accommodating various levels of signal voltages and making it versatile for different design specifications.
• High Output Drive: The NL27WZ14MU1TCG is capable of driving a high output current, which is essential for driving larger loads or for use in bus-oriented systems.

Applications

The ON Semiconductor NL27WZ14MU1TCG is suitable for a wide array of applications. Its high-speed operation and low power consumption make it ideal for portable and battery-powered devices, while its small form factor is perfect for compact electronic systems. Common applications include:

• Signal processing
• Logic level conversion
• Line driving
• Memory address decoding
• Clock generation circuits

With its robust performance and ON Semiconductor's commitment to quality, the NL27WZ14MU1TCG is a smart choice for designers looking to enhance the efficiency and reliability of their digital systems.
