ON Semiconductor NL17SZ32XV5T2 Single 2-Input OR Gate

The NL17SZ32XV5T2 from ON Semiconductor is a high-performance, single 2-input OR gate that offers a compact and efficient solution for a wide range of digital logic applications. This device is part of ON Semiconductor's NL17SZ series, which is renowned for its low-power consumption and high-speed operation.

Designed with advanced silicon gate CMOS technology, the NL17SZ32XV5T2 ensures minimal power dissipation with a typical quiescent current of only 10µA. This makes it an ideal choice for battery-powered and portable devices where power efficiency is a critical concern. The OR gate operates over a broad voltage range from 1.65V to 5.5V, providing the flexibility to be used in systems with different logic levels and interfacing requirements.

The NL17SZ32XV5T2 is characterized by its high-speed performance, with a propagation delay time of approximately 4.5ns at 5V, facilitating swift signal processing that is essential for high-speed computing and communications systems. Its input structures provide protection against static discharge, ensuring device longevity and reliability in various environments.

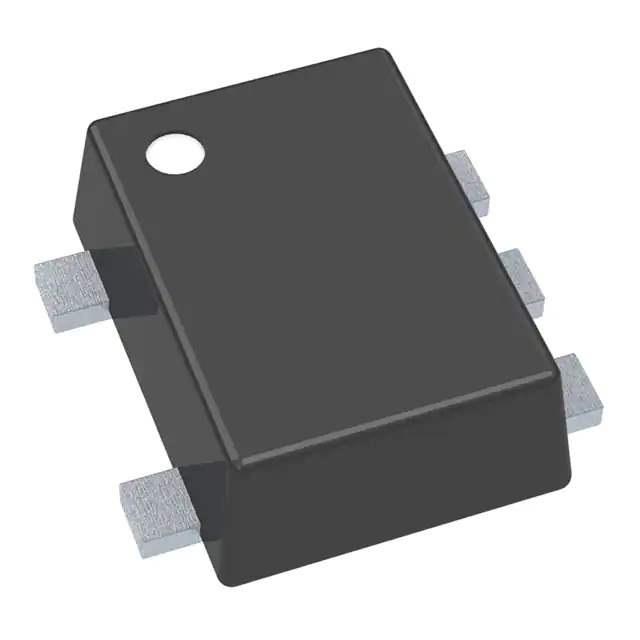

This OR gate comes in an ultra-small μDFN package, which is perfect for space-constrained applications. The compact footprint enables designers to optimize board space without compromising on functionality or performance. The device also supports a wide operating temperature range from -55°C to +125°C, making it suitable for industrial and automotive applications that demand robustness and consistent operation under extreme conditions.

In summary, the ON Semiconductor NL17SZ32XV5T2 is a versatile and reliable component that integrates seamlessly into logic circuits requiring OR gate functionality. Its low power usage, high-speed operation, and small form factor make it an excellent choice for designers looking to create efficient, high-performance electronic systems.
