ON Semiconductor NCP380LMUAJAATBG Overview

The ON Semiconductor NCP380LMUAJAATBG is a high-performance current limiting protection device designed to safeguard low-voltage systems from excessive current draw that can lead to damage or unsafe operating conditions. This product is part of the NCP380 series, which is known for its reliability and efficiency in protecting circuits by controlling the amount of current that can pass through them.

Key Features

• Current Limiting: The device offers a fixed current limit threshold, ensuring that connected components are not exposed to currents exceeding their capacity.
• High-Side Power Distribution Switch: This feature allows for the controlled distribution of power to various parts of the system, enhancing overall stability and performance.
• Over-Temperature Protection: The NCP380 integrates an over-temperature protection mechanism that automatically shuts down the output to prevent overheating, which can be particularly useful in tightly packed electronic environments.
• Reverse Current Blocking: The device prevents reverse currents, protecting the system from potential damage caused by reversed power connections or other failure modes.

Applications

The NCP380LMUAJAATBG is suitable for a wide range of applications, including but not limited to:

• Portable devices such as smartphones and tablets
• USB peripherals and USB hubs
• Consumer electronics that require precise current management
• Battery-powered devices where power conservation is critical

Technical Specifications

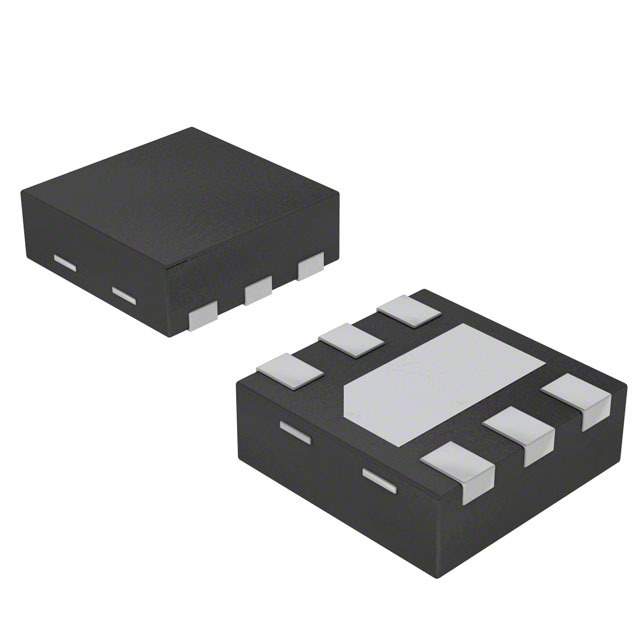

• Package: The device comes in a compact UDFN package, making it suitable for space-constrained applications.
• Voltage Range: It operates over a wide input voltage range, accommodating various power supply requirements.
• Efficiency: Its design ensures minimal voltage drop and high efficiency, which is essential for battery-operated devices.

Overall, the ON Semiconductor NCP380LMUAJAATBG is a robust solution for designers looking to incorporate reliable current limiting functionality into their systems, ensuring protection against overcurrent conditions while maintaining optimal performance.
