Product Overview: NCP2820FCT1G

The NCP2820FCT1G is a high-performance audio amplifier integrated circuit (IC) designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This compact, yet powerful, audio amplifier is specifically engineered to deliver exceptional sound quality for portable and space-constrained applications.

Key Features

• Output Power: The NCP2820FCT1G is capable of driving 2.65W of continuous average power into a 4Ω load with less than 1% distortion (THD+N) from a 5V power supply, making it suitable for a wide range of audio applications.
• Efficiency: This IC features a high efficiency of 90%, which minimizes power loss and heat generation, thus extending battery life in portable devices.
• Low Quiescent Current: The low quiescent current draw of 4mA at a 5V supply voltage contributes to the energy-saving characteristics of the amplifier, making it ideal for battery-powered devices.
• Pop & Click Suppression: It includes a built-in pop-and-click suppression circuit that reduces noise which can occur during turn-on and turn-off transitions.
• Thermal Protection: The NCP2820FCT1G is equipped with thermal overload protection that safeguards the IC from damage due to excessive heat.

Applications

The NCP2820FCT1G is versatile and can be used in various applications, including but not limited to:

• Mobile Phones
• Portable Media Players
• Handheld Gaming Devices
• Tablet Computers
• Notebook Computers
• Portable Speakers

Package and Quality

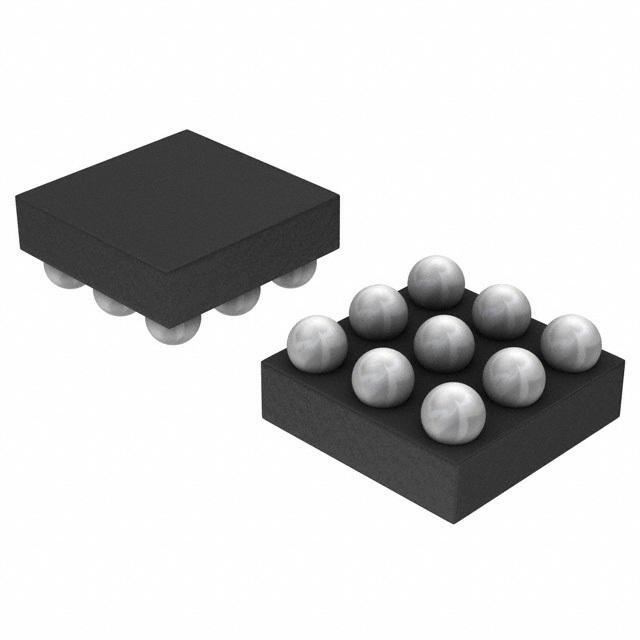

The device is offered in a space-saving 9-bump, flip-chip package (CSP), which allows for a minimal PCB footprint. The NCP2820FCT1G is also Pb-free, Halogen-free, and RoHS compliant, reflecting ON Semiconductor's commitment to environmental sustainability.

In conclusion, the NCP2820FCT1G from ON Semiconductor is an excellent choice for designers seeking a high-quality audio amplifier that combines power, efficiency, and compactness with advanced features like pop-and-click suppression and thermal protection. Its suitability for a broad array of portable applications makes it a go-to component in the audio design industry.
