ON Semiconductor MURF1560G Ultrafast Rectifier

The MURF1560G is a high-performance ultrafast rectifier designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This rectifier is engineered to cater to the demanding requirements of high-efficiency power supply applications and is well-suited for use in switch-mode power supplies (SMPS), inverters, and as a freewheeling diode in various applications.

Key Features

• Reverse Voltage: The MURF1560G offers a substantial reverse voltage of 600V, making it an excellent choice for systems that require a high breakdown voltage.
• Forward Current: With a forward current rating of 15A, this rectifier can handle significant current, ensuring reliability in high-power applications.
• Ultrafast Recovery Time: The device boasts an ultrafast recovery time of 35 ns, which minimizes power loss and improves efficiency, especially in fast-switching applications.
• Low Forward Voltage Drop: The low forward voltage drop reduces power dissipation and enhances thermal efficiency, thereby contributing to the overall energy-saving characteristics of the circuit.

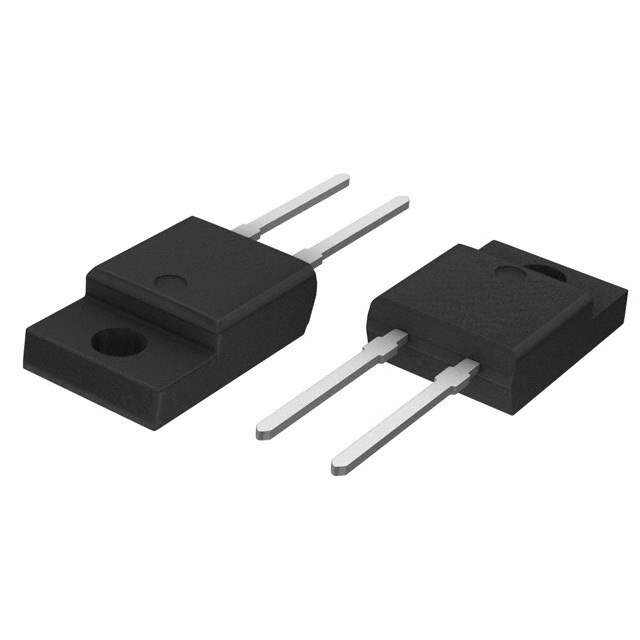

• Robust Construction: The MURF1560G is packaged in an isolated TO-220 full-pak, providing excellent thermal and electrical isolation, which is crucial for maintaining performance and reliability.

Applications

• Power Management Systems
• Switch-Mode Power Supplies (SMPS)
• High-Frequency Inverters
• DC-DC Converters
• Freewheeling Diodes in Converters and Motor Control Circuits

Advantages

The MURF1560G stands out in its class due to its ultrafast recovery time and high voltage rating, which are essential for minimizing losses and improving efficiency in high-speed switching environments. Its robust package ensures that it can withstand the thermal and mechanical stresses typically found in industrial and commercial electronic equipment. The combination of these features makes the MURF1560G an ideal choice for engineers looking to enhance the performance and reliability of their power conversion systems.

By integrating the MURF1560G into your designs, you can expect a significant improvement in system efficiency, reduced heat generation, and a compact form factor, thanks to ON Semiconductor's commitment to quality and performance.
