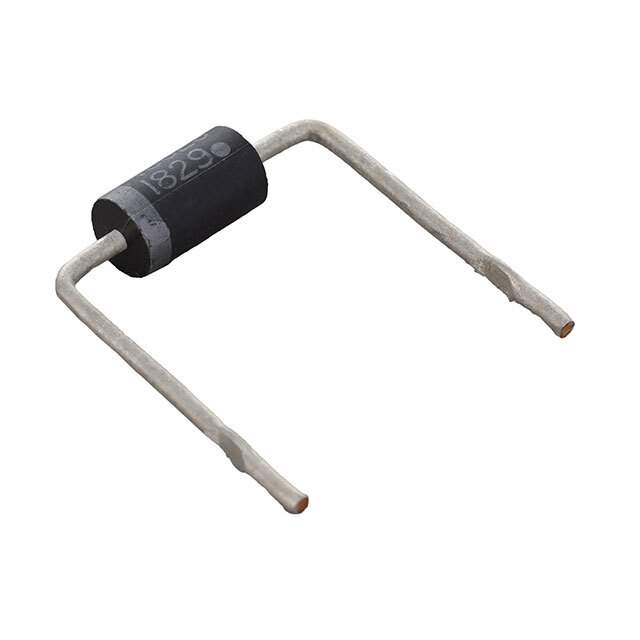

Product Overview: MUR480ESG - ON Semiconductor

The MUR480ESG is a state-of-the-art ultrafast recovery diode designed by ON Semiconductor, a leader in power and signal management. This diode is engineered specifically for applications requiring low forward drop and minimal reverse recovery time. The device is a perfect fit for high-frequency power converters, inverters, and freewheeling diodes in a variety of electronic systems.

Key Features

• Ultrafast Recovery Time: The MUR480ESG boasts an ultrafast recovery time, typically less than 25 ns, which is crucial for reducing losses in high-speed switching applications.
• High Surge Current Capability: Designed to handle high surge currents without failure, this diode ensures reliability and robustness in challenging conditions.
• Low Forward Voltage Drop: With a low forward voltage drop, this diode enhances system efficiency by minimizing conduction losses.
• Reverse Voltage: It is rated for a reverse voltage of 800 V, providing a wide safety margin for over-voltage conditions.
• High Reliability: The MUR480ESG is encapsulated in a highly reliable package, offering long-term stability and performance consistency.
• RoHS Compliant: This product is compliant with the Restriction of Hazardous Substances (RoHS) directive, making it environmentally friendly and safe for use in all types of electronic equipment.

Applications

The MUR480ESG is versatile and can be used in a wide array of applications. It is particularly well-suited for use in power supplies, where its rapid switching and low loss characteristics can improve efficiency and reduce thermal stress. Other applications include:

• Switching power supplies
• Power inverters
• Motor controllers
• Snubber circuits
• Free-wheeling diodes for motor applications

Technical Specifications

The device is available in a TO-220AC package, which is widely used and easy to integrate into various circuit designs. Its operating junction temperature range is from -65°C to +175°C, accommodating a broad spectrum of environmental conditions.
